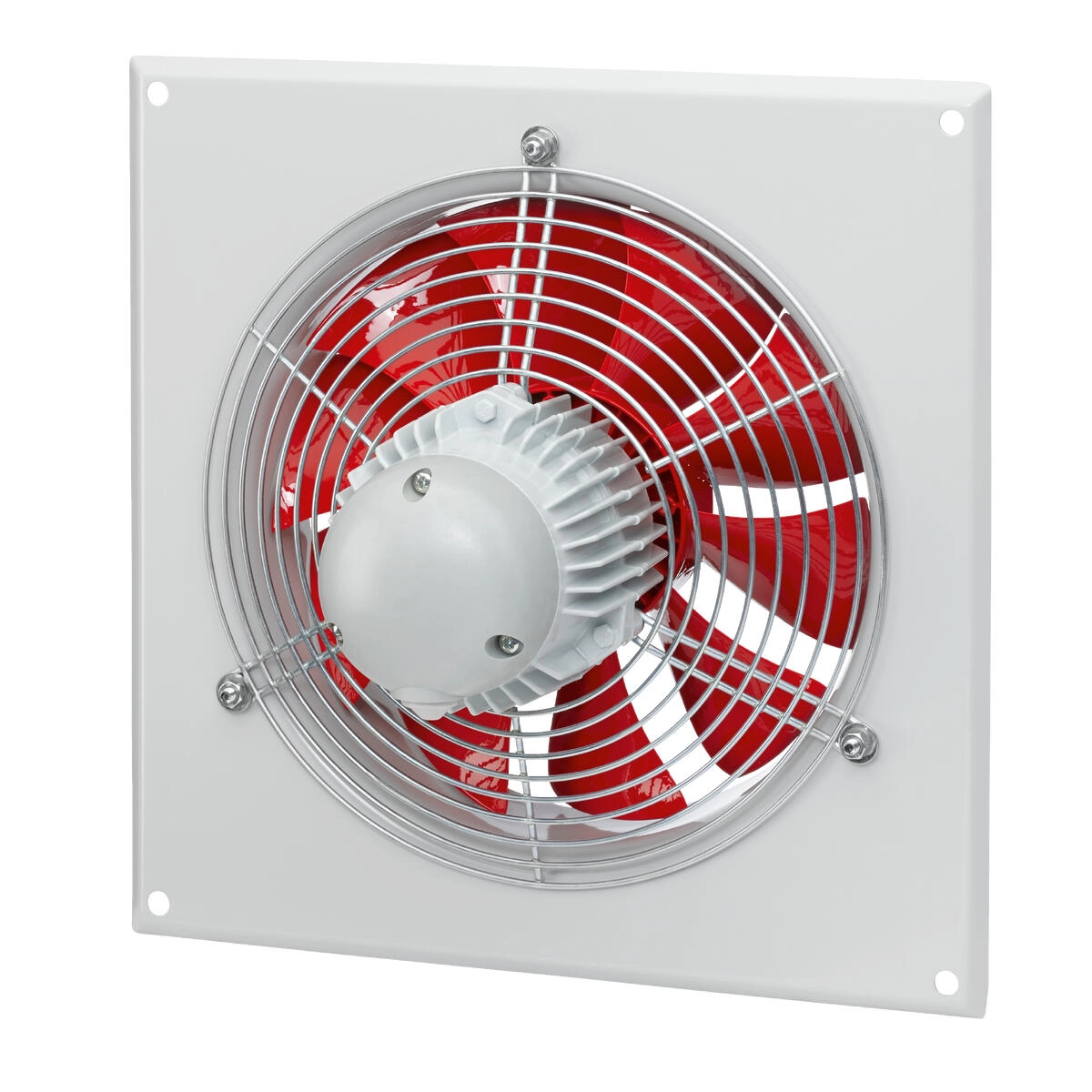

Helios Axial High power fan HQD 250/4/2
€735.96
Bezahlen Sie sicher und schnell mit:
Axial High power fan with square Installation panel and Inlet nozzle, directly driven.
Square Installation panel with moulded-on Nozzle made of galvanized sheet steel, two compartment painted, Colour papyrus white.
Impeller with High power Charakteristik with profiled Blades made of Plastic, aerodynamically on the Application optimized, dynamically made of balanced.
Three phase current Squirrel cage rotor Motor, with Dahlander winding (pole-changing), closed Design, maintenance-free, sealed, low-noise Ball bearings with Lifetime lubrication.
Dokumente
| Degree of protection: | IP 55 |
|---|---|
| Nominal pipe diameter: | 250 mm |
| Height: | 360 mm |
| Width: | 360 mm |
| Material: | Installation panel made of sheet steel, galvanized; Impeller made of Thermoplastic |
| Airflow rate: | 2110 m³/h |
| Color: | Housing: papyrus white; Impeller: red |
| Current uncontrolled: | 0,16/0,43 A |
| Installation: | Wall |
| Insulation class: | F |
| Number of poles: | 4/2 |
| Rated power: | 0,058/0,212 kW |
| Rated speed: | 1430 / 2770 |
