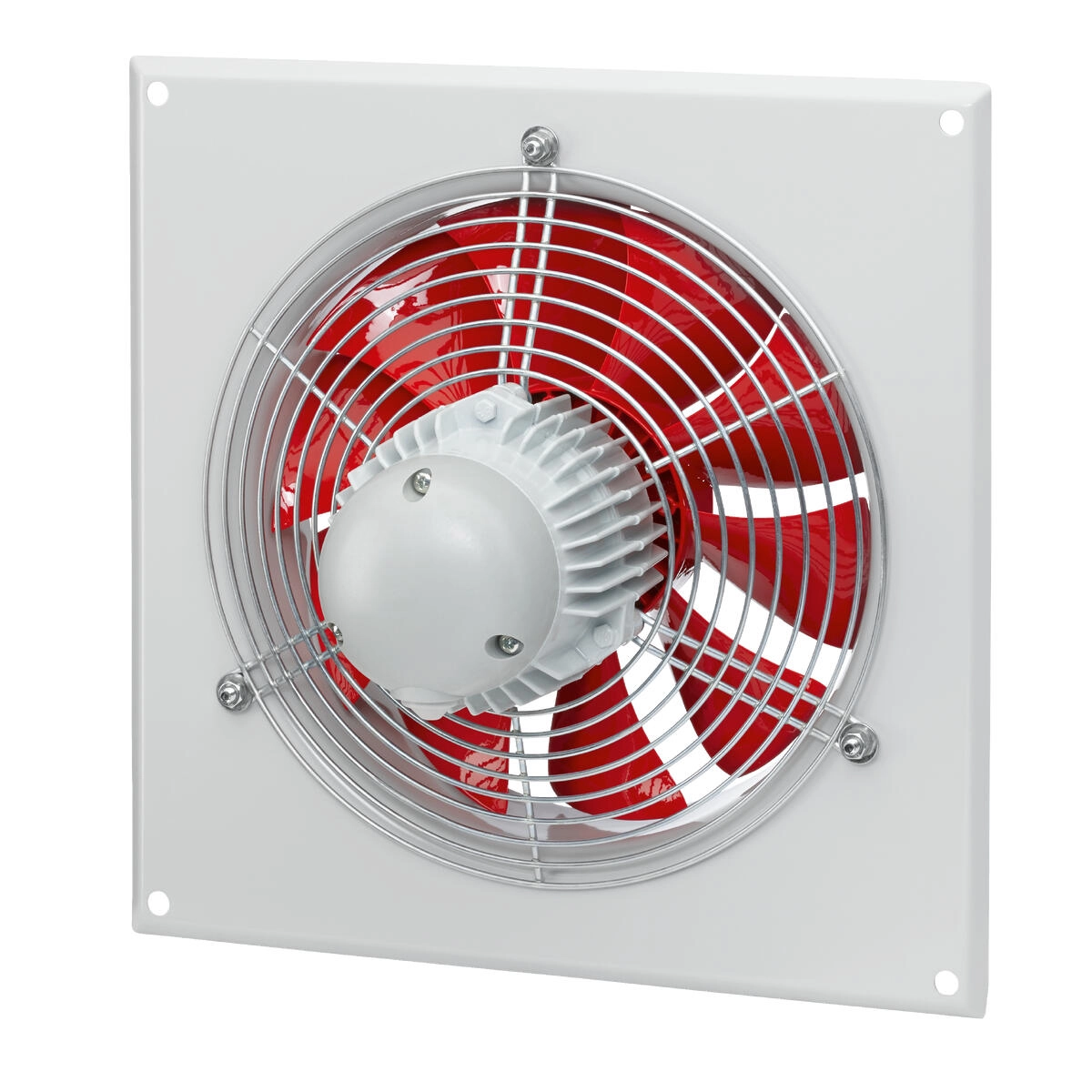

Helios Axial High power fan HQD 250/6
€500.59
Bezahlen Sie sicher und schnell mit:
Axial High power fan with square Installation panel, Inlet nozzle, directly driven.
Square Installation panel with moulded-on Nozzle made of galvanized sheet steel, two compartment painted, Colour papyrus white.
Impeller with 7 Blades made of Thermoplastic. High Efficiency, low Operation noise. Vibration-free Operation through dynamically Balancing after Quality grade G 6.3 VDI 2060 and DIN ISO 1940.
Three phase current Squirrel cage rotor Motor through Voltage reducer Speed controllable, Thermal contacts, closed Design, maintenance-free, sealed, low-noise Ball bearings with Lifetime lubrication.
Dokumente
| Degree of protection: | IP 55 |
|---|---|
| Nominal pipe diameter: | 250 mm |
| Height: | 360 mm |
| Width: | 360 mm |
| Material: | Installation panel made of sheet steel, galvanized; Impeller made of Thermoplastic |
| Airflow rate: | 700 m³/h |
| Color: | Installation panel: Sheet steel, galvanized; Impeller: Thermoplastic |
| Controllability: | Transformer |
| Current uncontrolled: | 0.27 A |
| Installation: | Wall |
| Number of poles: | 6 |
| Permissible medium temperature: | 40 °C |
| Rated power: | 0.061 kw |
| Rated speed: | 980 |
