Helios Axial High power fan HQW EC 250 A
€865.08
Bezahlen Sie sicher und schnell mit:

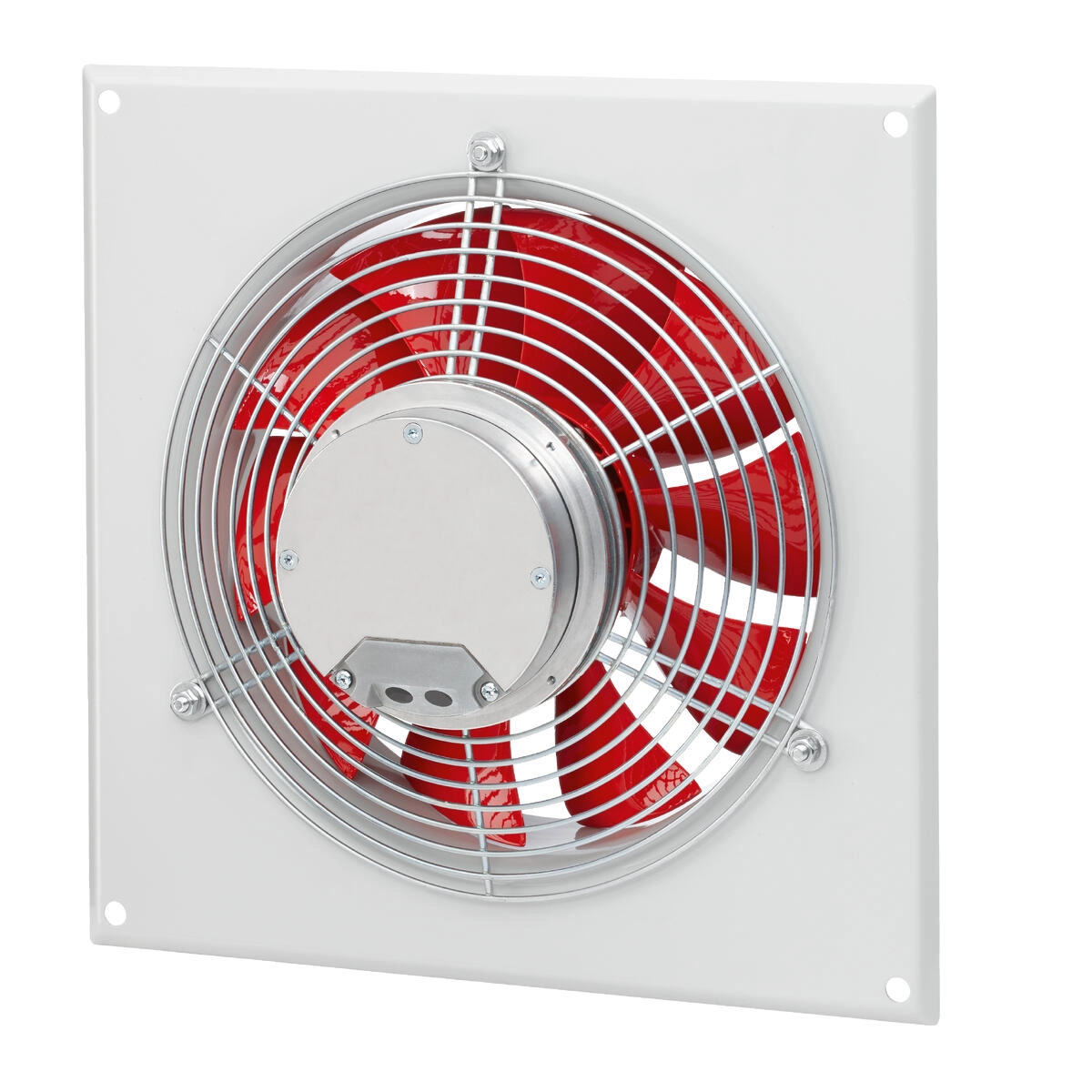

EC Axial High power fan
Square Installation panel made of galvanized sheet steel with additionally Two-layer coating in papyrus white. Protection grille made of powder-coated Steel, DIN EI ISO 13857 according to.
Impeller with High power Charakteristik with profiled Blades made of Plastic, aerodynamically on the Application optimized, dynamically made of balanced.
Energy-saving, speed-controllable EC external rotor motor in Degree of protection IP 54 with highest Efficiency. Maintenance- and radio-interference-free, excellent electromagnetic Compatibility (EMV), ball-bearing. Integrated electronic Temperature monitoring for EC motor and Electronics. As standard with a internal Potentiometer for the Setting the Control voltage and thereby a any Fan speed between min. and max. Speed. Stepless via external Speed Potentiometer controllable. The Control via Three stage Switch or. stepless via Universal control system or electronic Differential pressure-/Temperature Controller possible.
Dokumente
| Degree of protection: | IP 54 |
|---|---|
| Nominal pipe diameter: | 250 mm |
| Height: | 360 mm |
| Width: | 360 mm |
| Material: | Installation panel made of galvanized sheet steel; Protection grille made of powder-coated Steel; Impeller made of Plastic |
| Airflow rate: | 1970 m³/h |
| Color: | Housing: papyrus white; Impeller: red |
| Current uncontrolled: | 1.03 A |
| Installation: | Wall |
| Other: | EC-Technologie |
| Permissible medium temperature: | 40 °C |
| Rated power: | 0.125 kW |
| Rated speed: | 2710 |
