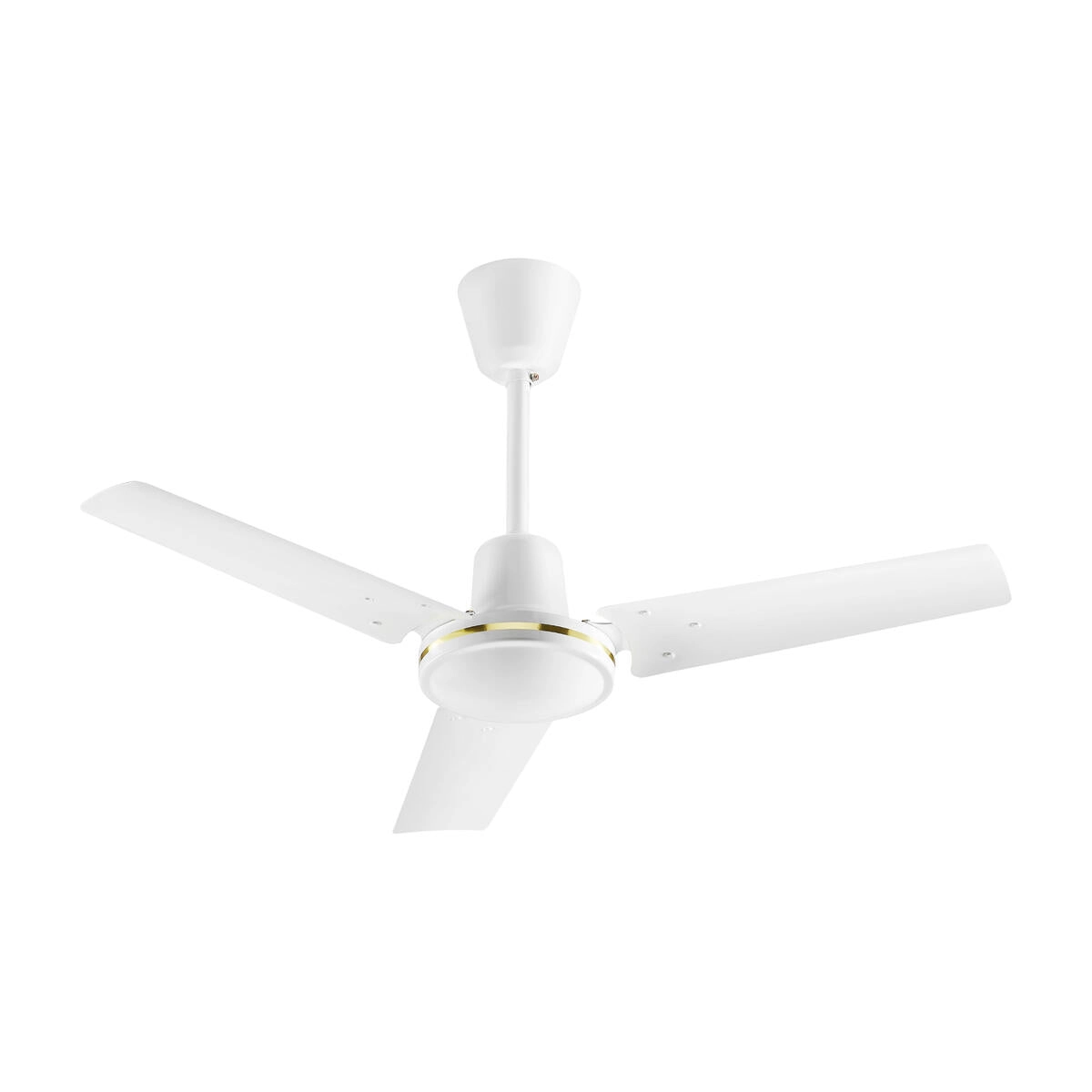

Helios Ceiling fan DVW 90
€126.84
Bezahlen Sie sicher und schnell mit:
Robust Metal version in classic Design.
Maintenance- and radio-interference-free closed Motor for Continuous operation suitable, white baked-enamel coated. Vibration-damping Suspension for low-vibration Operation. Easy Installation through pre-assembled Delivery: it are only still the three Impeller blades to screw on.
Variable Suspension height through Delivery a short and a long Suspension tube. Speed-controllable with 5-Stage Speed controller TSW 0,3 (Accessories). TÜV GS tested. The Accident-prevention regulations (UVV) give mandatory a Minimum clearance of 2,3 m from the Floor to for the Lower blade edge before. Absturzsicherung with Fangseilnach DIN EN 60335-2-80. Airflow direction reversible. Flow direction for the Floor or for the Ceiling through Fixed connection or using Reversing switch (Accessories DSEL 2) festlegbar. At Reversing operation (Airflow direction after top) Mindestanlaufspannung of 100 V required.
Dokumente
| Nominal pipe diameter: | 100 mm |
|---|---|
| Height: | 565 mm |
| Width: | 900 mm |
| Material: | Metal |
| Color: | white |
| Controllability: | Transformer / Electrically |
| Current uncontrolled: | 0.26 A |
| Installation: | Ceiling |
| Number of poles: | 16 |
| Permissible medium temperature: | 40 °C |
| Rated power: | 0.05 kW |
| Rated speed: | 340 |
