Helios Electric Heating coil control EHSD 30
€1,597.40
Bezahlen Sie sicher und schnell mit:
Electronic temperature-controlled, semiconductor-controlled control system for EHR. With aluminium housing for wall or control-cabinet mounting. Control via external TFK / TFR sensor or external control voltage 0–10 V DC. Heating output divided into a controlled portion (max. 17 kW) and base-output portion (17 kW). 400 V 3~, I max. 25 A, switching relay 230 V~, I max. 2 A, contactor 400 V 3~, I max. 20 A, IP 20.
Dokumente
| Degree of protection: | IP 40 |
|---|---|
| Height: | 207 mm |
| Width: | 160 mm |
| Material: | Aluminium housing |
| Current uncontrolled: | 25 A |
| Depth: | 95 mm |
| Rated frequency: | 50/60 Hz |
| Rated power: | 17/34 kW |
Passende Artikel

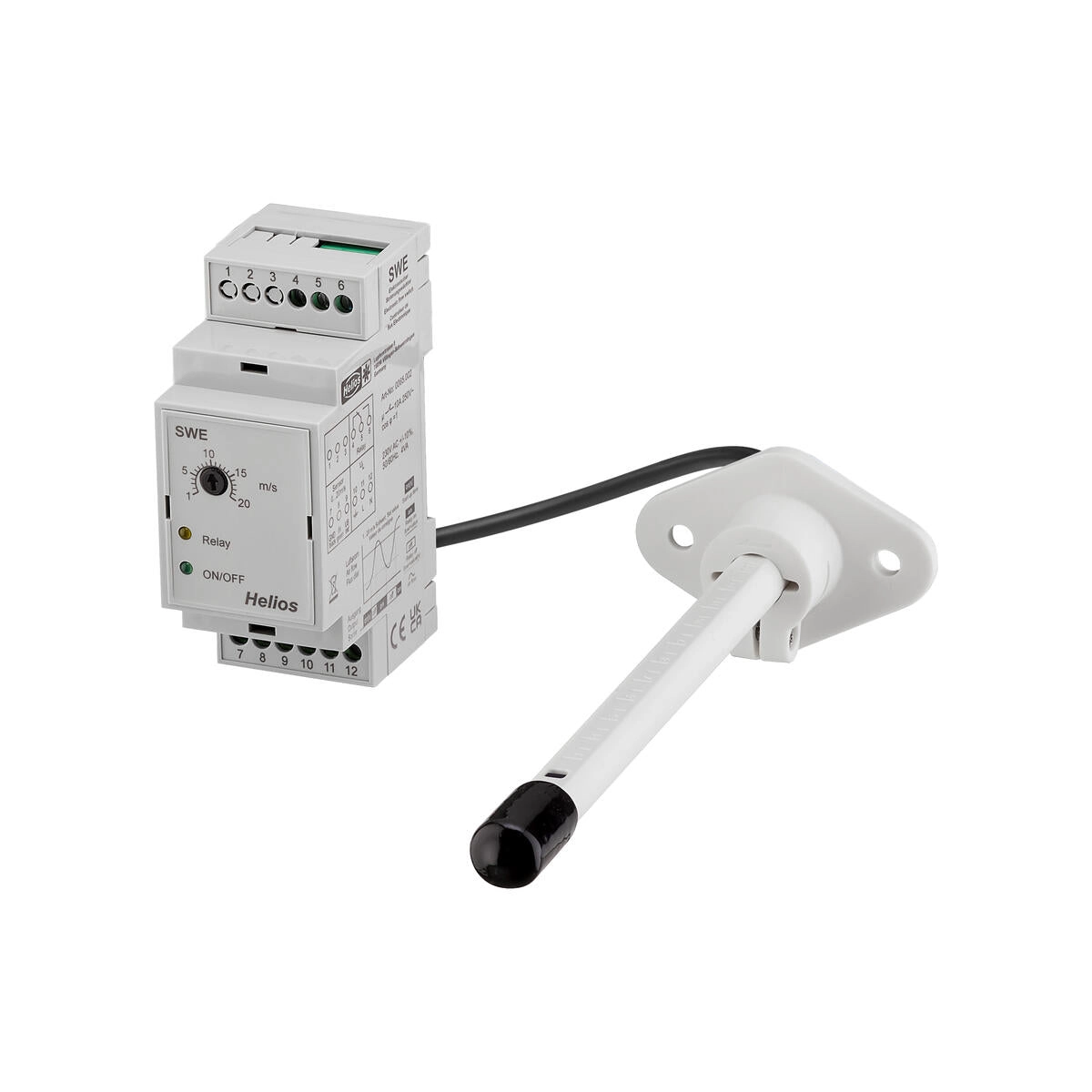

For the Monitoring of the Airflow in a Rohrstrecke. The Air sensor compares the Airflow with the before provided Setpoint, the at the Control unit of 1 to 20 m/s set are can. At Achieve/Exceed of the Setpoint zieht the Relay at or. falls it off (Arbeits- or Ruhestromprinzip). Status Display using two LEDs. For the Control-cabinet installation for Mounting on 35mm Trageschiene suitable.DokumenteHelios_HK_6.0_D_0725_621

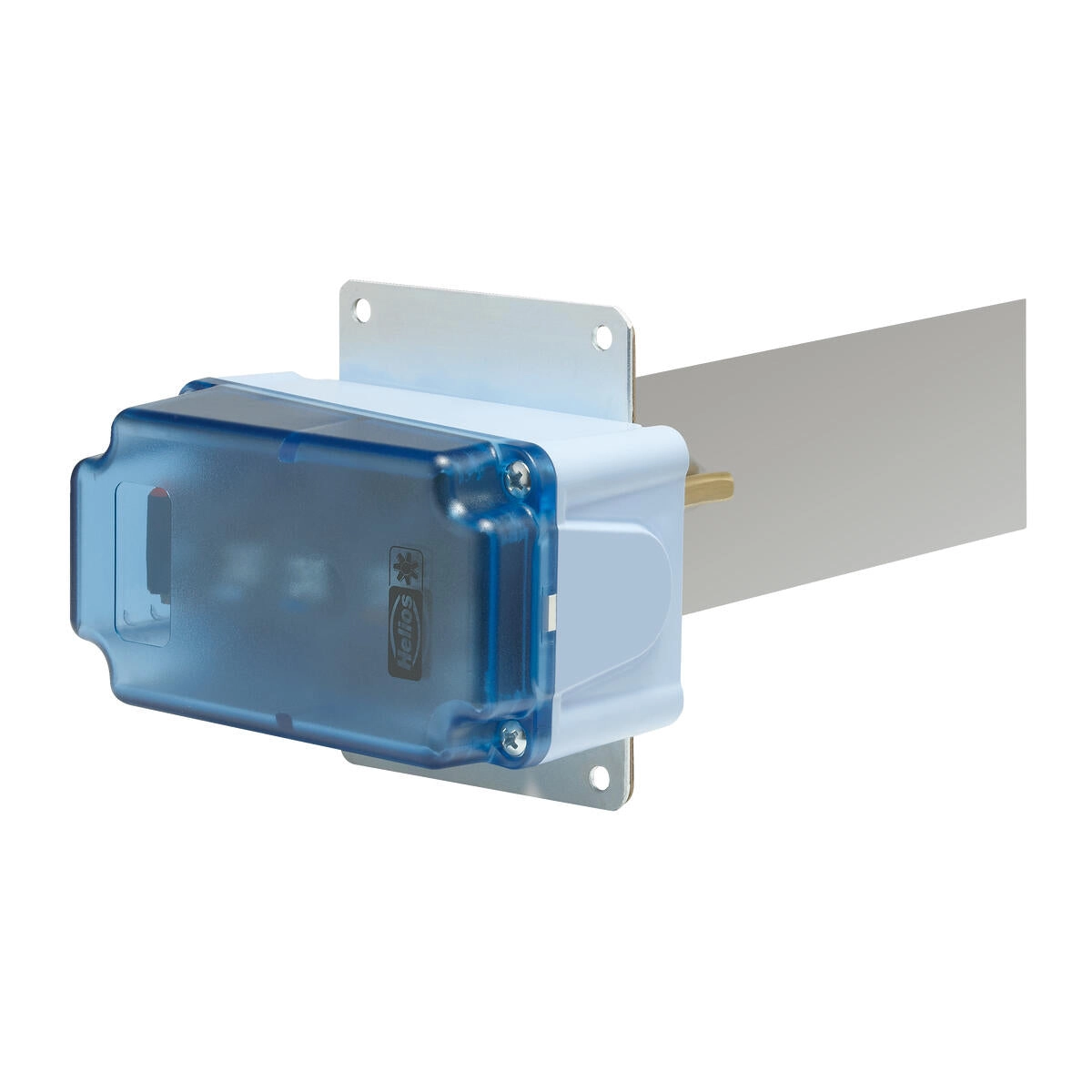

For the Air velocity Monitoring in Ducts and Pipe. Specified at the Use of Electric heating coil. Stable Version, Stainless steel- Paddle, Vorrichtung for the Mounting at the Outside side of Ducts. Circuit as Normally closed contact or Normally open contact. Made of solution at Under-/Exceedance the vorgeg. Flow velocity. (Unterschreit. min. approx. 1,5 m/s, Exceed. min. approx. 3,0 m/s).
