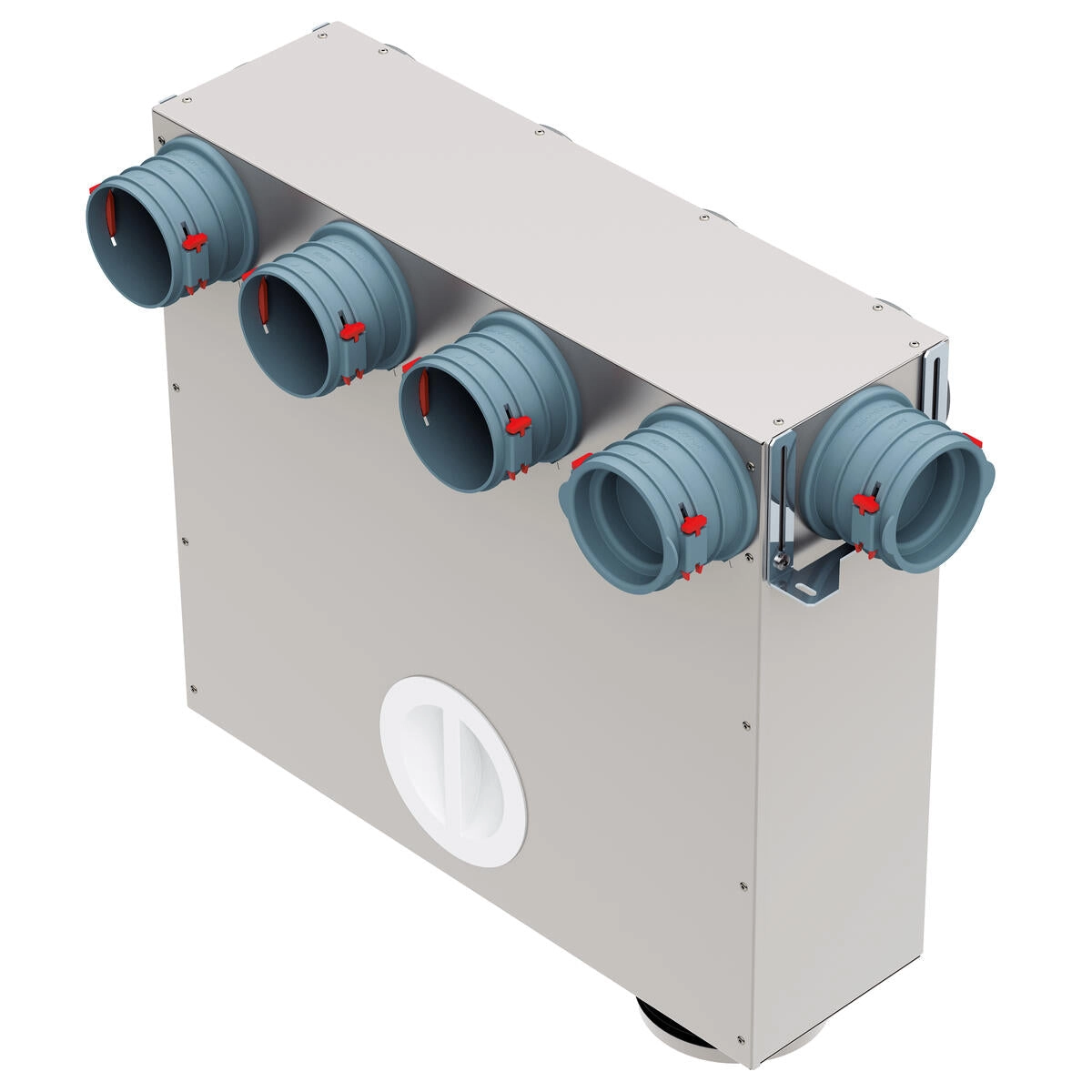

Helios FlexPipe Multi Distribution box FRS-MVK 4+1-75/125
High-quality Connection pipe for Ventilation systems
Regular price:
€266.56
Product number:
10831289
Stock:
0
Manufacturer:
Helios
Manufacturer number:
03843
Kostenloser Versand für dieses Produkt
Sicher kaufen mit Trusted Shops
Immer 100 Tage Widerrufsrecht
Bezahlen Sie sicher und schnell mit:
Sofort
VISA
PayPal
RIVERTY
Description
FlexPipe-plus multi-distributor box for universal installation in or on the structural concrete floor, or as a floor-standing storey distributor. Fixed using the supplied mounting brackets. 10 connection options for up to 5 round FRS-R 75 ventilation ducts using the supplied individual bayonet spigots. DN 125 duct connection can be arranged horizontally or vertically. With sound-absorbing, smooth internal lining and large inspection opening. Internal lining material: PU foam, foil-faced.
Dokumente
Properties
| Nominal pipe diameter: | 75/125 mm |
|---|---|
| Height: | 470 mm |
| Width: | 530 mm |
| Material: | Housing made of galvanized sheet steel; Connection sleeve made of sheet steel; Internal lining: PU foam, foil-coated |
| Depth: | 160 mm |
| Installation: | Ceiling or floor upright |
