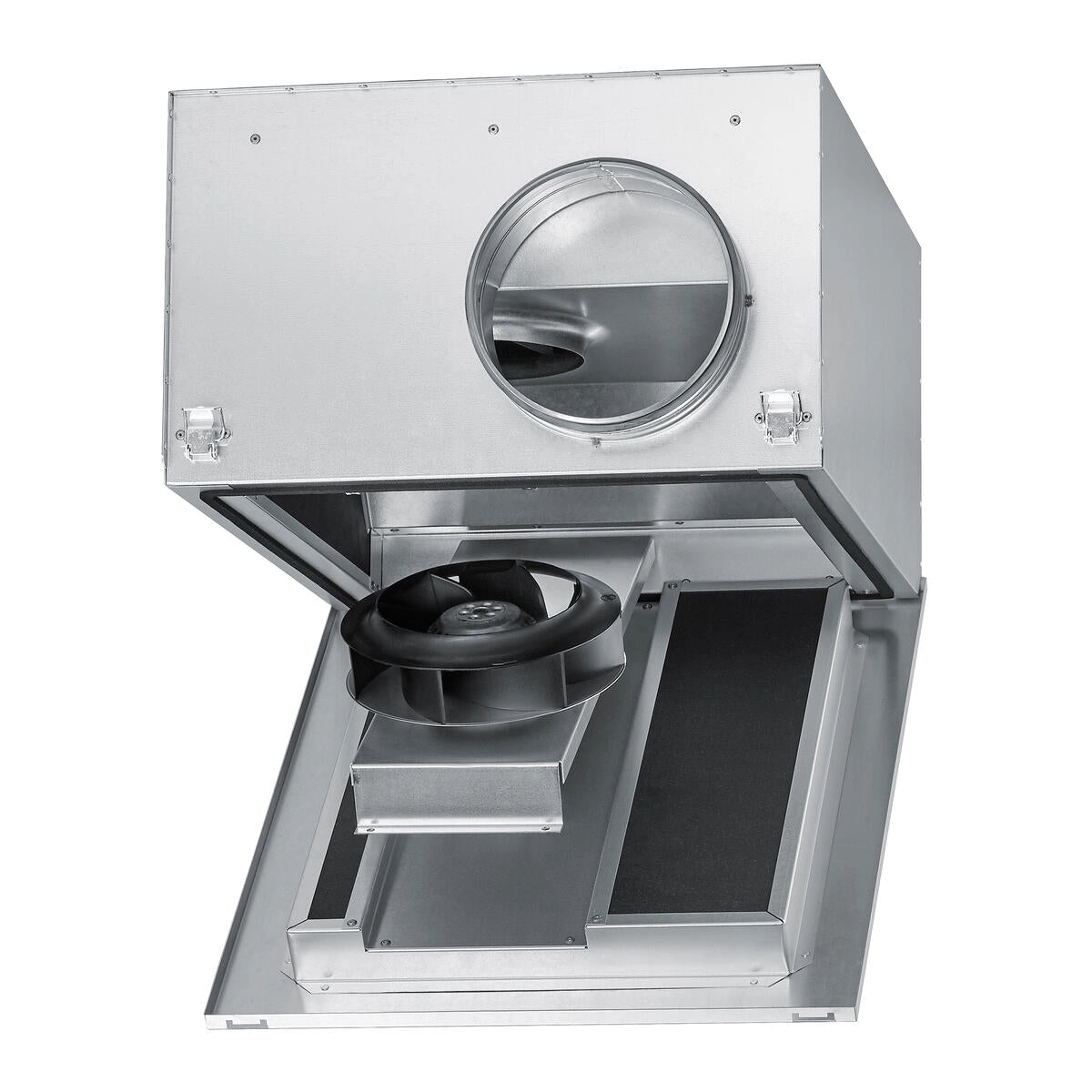

Helios Inline fan SB 200 D SILENTBOX
€773.26
Bezahlen Sie sicher und schnell mit:
Centrifugal inline fan with sound-insulated housing.
Sound-insulating housing made of galvanised sheet steel with round connection spigots sized for standard ducts. Sound-absorbing perforated-sheet inner lining backed with 50 mm mineral-fibre board. Removable cover. Fan chamber freely accessible. Motor and impeller can be swung out.
High-performance centrifugal impeller with backward-curved plastic blades. Vibration-free operation through dynamic balancing to quality grade G 6.3 in accordance with VDI 2060 and DIN ISO 1940.
Single-phase AC external-rotor motor, enclosed design, maintenance-free, speed controllable by voltage reduction, integrated thermal contacts, sealed low-noise ball bearings with long-term lubrication.
Dokumente
| Degree of protection: | IP 44 |
|---|---|
| Nominal pipe diameter: | 200 mm |
| Height: | 308 mm |
| Width: | 507 mm |
| Material: | Housing made of galvanized sheet steel; Impeller made of Plastic |
| Airflow rate: | 1030 m³/h |
| Controllability: | Transformer / Electrically |
| Current uncontrolled: | 0.69 A |
| Depth: | 616 mm |
| Installation: | Pipe |
| Other: | Schallisoliert |
| Permissible medium temperature: | 50 °C |
| Rated power: | 0.16 kW |
| Rated speed: | 2700 |
