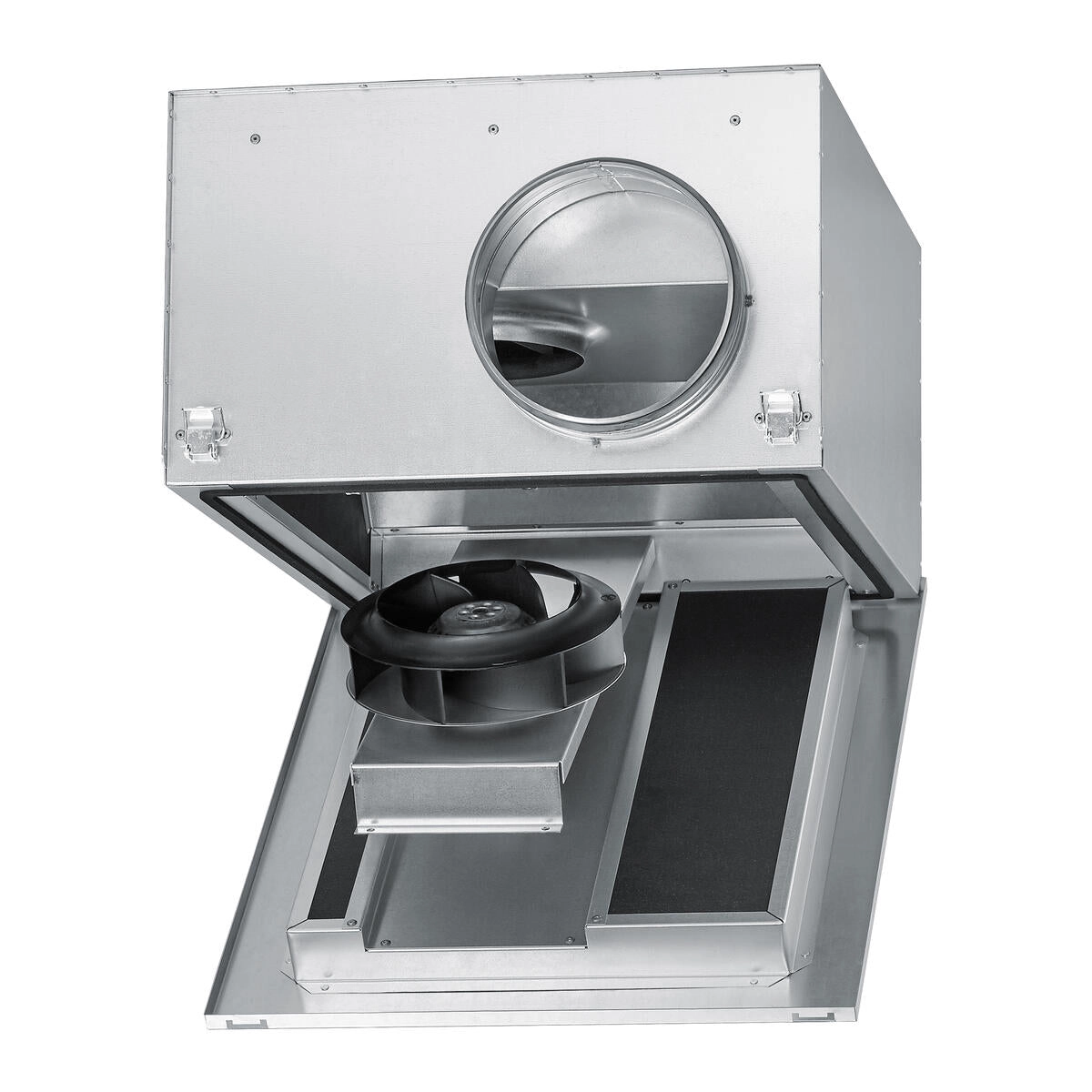

Helios Inline fan SB 250 E SILENTBOX
€959.79
Bezahlen Sie sicher und schnell mit:
Radial inline fan with sound-insulated Housing.
Sound-insulating Housing made of galvanized sheet steel with round Connection spigot on Standard pipes matched. Sound-absorbing Perforated sheet Internal lining, with 50mm strong Mineral fibre board stored. Cover removable. Fan room free accessible. Motor and Impeller made of pivoting.
High-performance centrifugal impeller with backward-curved Blades made of Plastic. Vibration-free Operation through dynamically Balancing after Quality grade G 6.3 VDI 2060 and DIN ISO 1940.
Single-phase AC external rotor motor closed Design, maintenance-free, Speed through Voltage reducer controllable, installed Thermal contacts, sealed, low-noise Ball bearings with Lifetime lubrication.
Dokumente
| Degree of protection: | IP 44 |
|---|---|
| Nominal pipe diameter: | 250 mm |
| Height: | 410 mm |
| Width: | 608 mm |
| Material: | Housing made of galvanized sheet steel; Impeller made of Plastic |
| Airflow rate: | 1080 m³/h |
| Controllability: | Transformer / Electrically |
| Current uncontrolled: | 0.71 A |
| Depth: | 658 mm |
| Installation: | Pipe |
| Other: | Schallisoliert |
| Permissible medium temperature: | 50 °C |
| Rated power: | 0.165 kW |
| Rated speed: | 2690 |
