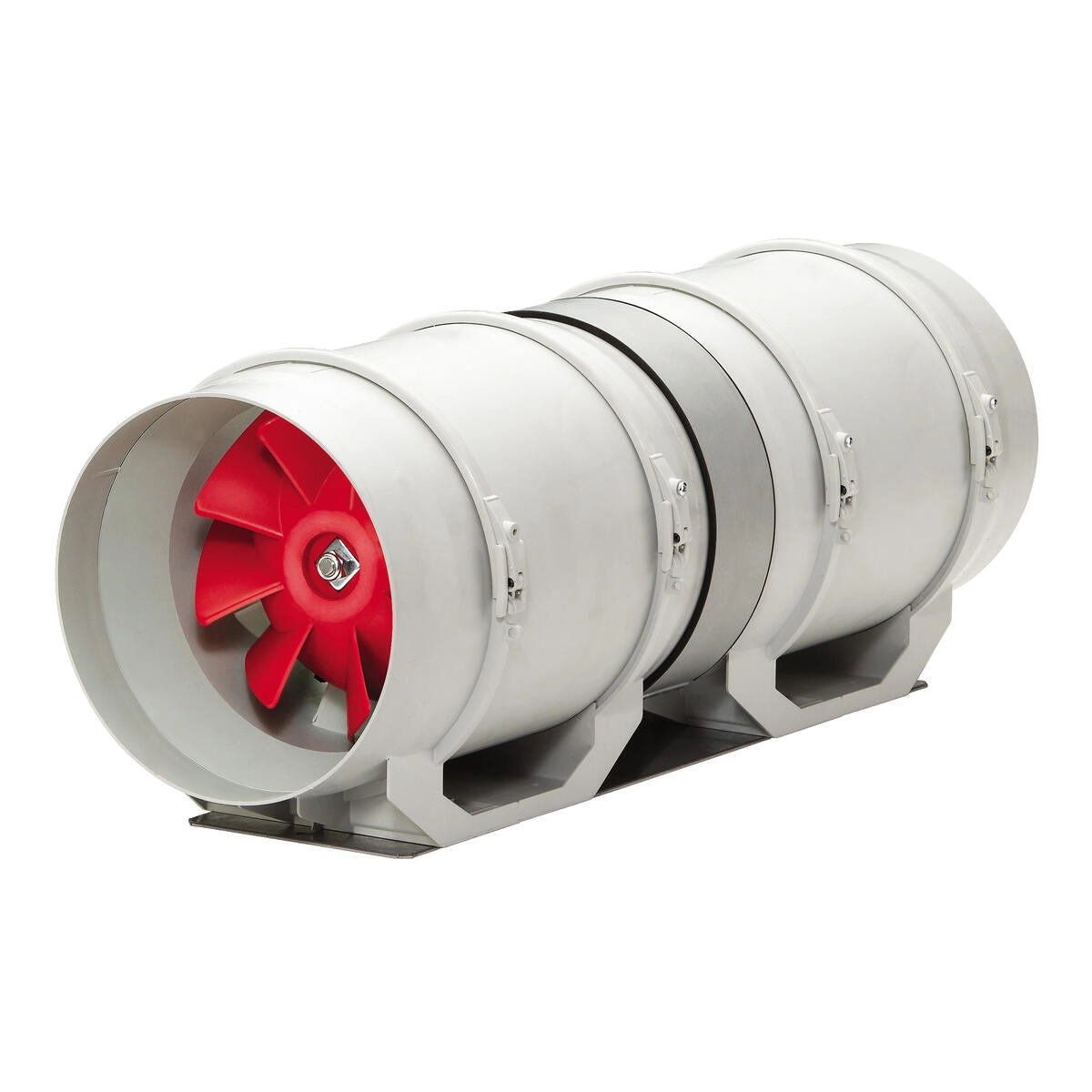

Helios Multivent Fan MVZ 160, two-stage
€514.15
Bezahlen Sie sicher und schnell mit:
Two-stage Fan Unit. Two swing-out, hintereinander switched MV Fans are using Sleeve connected and on a common Base panel installed. Delivery as ready for installation Kit. Through Series operation is the Pressure power etwa doubled.
Housing made of impact- and corrosion-resistant Plastic, Colour light grey, with moulded-on Installation bracket for easy Installation at Wall or Ceiling as well as the Norm Pipe Diameter according to Intake- and Discharge spigot. Through Release the Clamping bracket is the Fan unit with Terminal box in each Position rotatable and for the Maintenance and Cleaning removable. Delivery incl. Wall plug and Screws.
Semi-axial Impeller, eight spatial curved Blades made of Thermoplastic. Vibration-free Operation through dynamically Balancing after Quality grade G 6.3 VDI 2060 and DIN ISO 1940.
Closed, ball-bearing Capacitor motor with Moisture protection, Insulation class F, for Continuous operation. Maintenance- and radio-interference-free. Motor protection through thermal Overload protection in the Winding.
Dokumente
| Degree of protection: | IP 44 |
|---|---|
| Nominal pipe diameter: | 160 mm |
| Height: | 214 mm |
| Width: | 130 mm |
| Material: | Housing made of Plastic; Impeller made of Thermoplastic |
| Airflow rate: | 550 m³/h |
| Color: | Housing: light grey; Impeller: red |
| Current uncontrolled: | 0,36/0,52 A |
| Depth: | 551 mm |
| Installation: | Pipe; Wall, Ceiling |
| Number of poles: | 2/2 |
| Permissible medium temperature: | 60 °C |
| Rated power: | 0,08/0,11 kW |
| Rated speed: | 1520 / 2290 |
