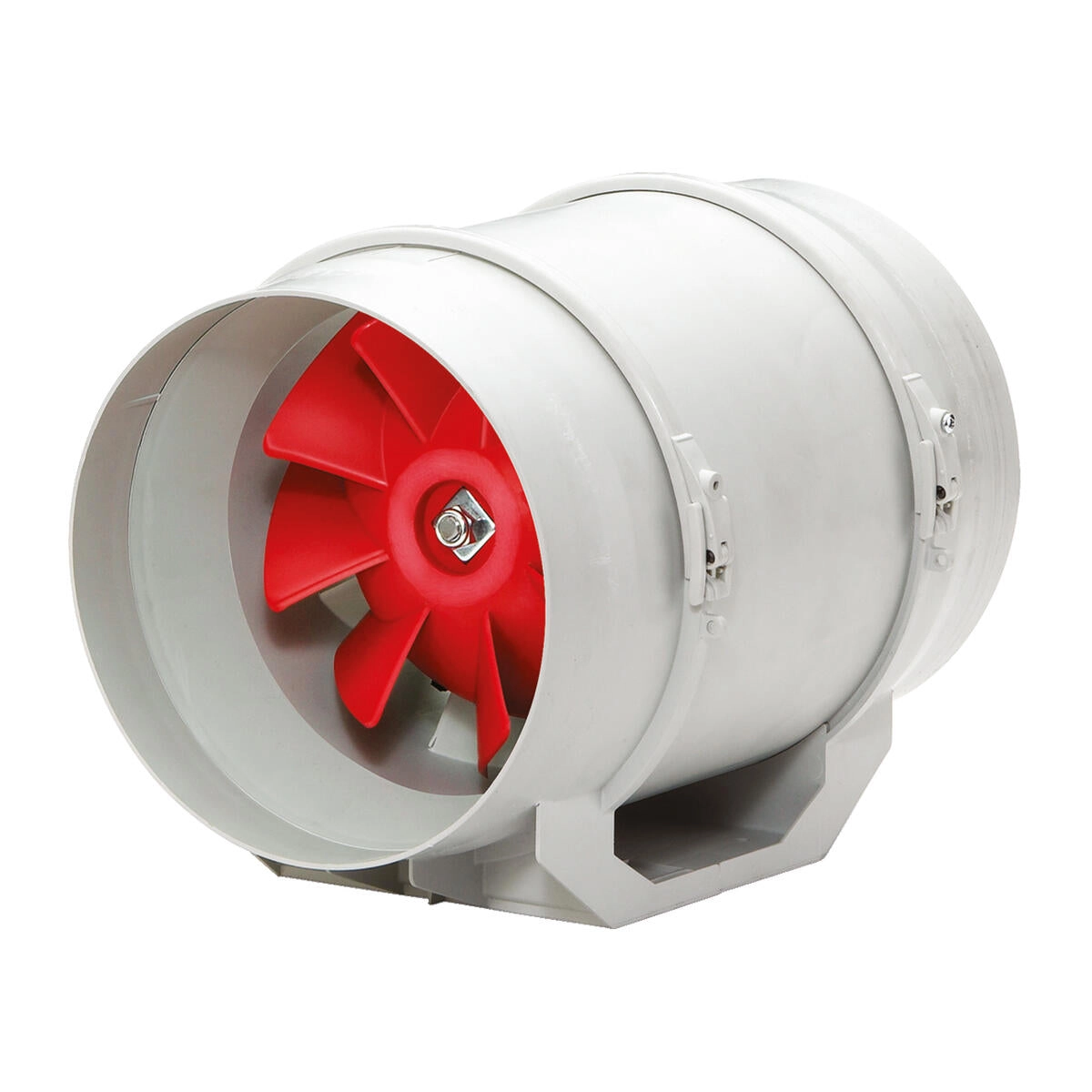

Helios Multivent Inline fan MV 125
€181.11
Bezahlen Sie sicher und schnell mit:
Made of pivoting Inline fan with high Pressure- and Volume power, for the space-saving Installation in the Pipe routing.
Housing made of impact- and corrosion-resistant Plastic, Colour light grey, with moulded-on Installation bracket for easy Installation at Wall or Ceiling as well as the Norm Pipe Diameter according to Intake- and Discharge spigot. Through Release the Clamping bracket is the Fan unit with Terminal box in each Position rotatable and for the Maintenance and Cleaning removable. Delivery incl. Wall plug and Screws.
Semi-axial Impeller, eight spatial curved Blades made of Thermoplastic. Vibration-free Operation through dynamically Balancing after Quality grade G 6.3 VDI 2060 and DIN ISO 1940.
Closed, ball-bearing Capacitor motor with Moisture protection, Insulation class F, for Continuous operation. Maintenance- and radio-interference-free. Motor protection through thermal Overload protection in the Winding.
Dokumente
| Degree of protection: | IP 44 |
|---|---|
| Nominal pipe diameter: | 125 mm |
| Height: | 211 mm |
| Material: | Housing made of Plastic; Impeller made of Thermoplastic |
| Airflow rate: | 360 m³/h |
| Color: | Housing: light grey; Impeller: red |
| Current uncontrolled: | 0,11/0,15 A |
| Depth: | 258 mm |
| Installation: | Pipe; Wall, Ceiling |
| Number of poles: | 2/2 |
| Permissible medium temperature: | 60 °C |
| Rated power: | 0,025/0,033 kW |
| Rated speed: | 1670 / 2300 |
