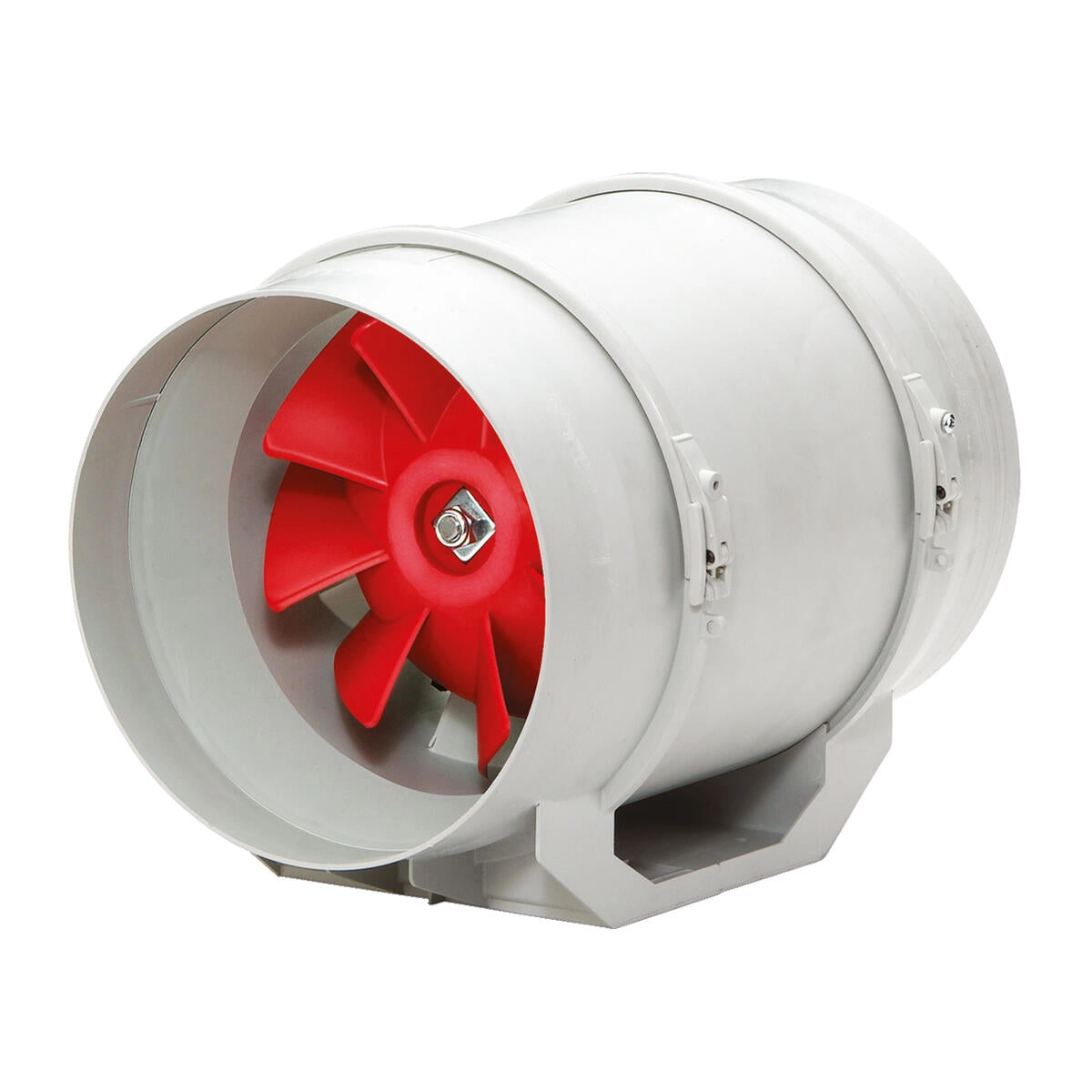

Helios Multivent Inline fan MV EC 160
€507.73
Bezahlen Sie sicher und schnell mit:
Swing-out EC inline fan with high pressure and airflow performance for space-saving installation in the duct run.
Housing made of impact- and corrosion-resistant plastic, colour light grey, with moulded mounting bracket for easy installation on wall or ceiling and inlet and outlet spigots matching standard duct diameters. By releasing the retaining clips, the fan unit with terminal box can be rotated to any position and removed for maintenance and cleaning. Supplied including wall plugs and screws.
Optimised impeller for high pressure and airflow performance, made of high-quality plastic. Dynamically balanced for low-noise operation.
Driven by an energy-saving, speed-controllable EC external-rotor motor with maximum efficiency. Maintenance-free, radio-interference-free and fitted with ball bearings. Integrated electronic temperature monitoring for EC motor and electronics.
A potentiometer for setting the control voltage and therefore any fan speed between minimum and maximum speed is included in the scope of delivery. Infinitely variable speed control with external PU / PA potentiometer or continuous speed control with EUR-EC universal control system. Connection via spacious terminal box (IP45) on the outside of the housing, rotatable to any position.
Dokumente
| Degree of protection: | IP 45 |
|---|---|
| Nominal pipe diameter: | 160 mm |
| Height: | 265 mm |
| Material: | Housing made of Plastic; Impeller made of Plastic |
| Airflow rate: | 620 m³/h |
| Color: | Housing: light grey; Impeller: red |
| Current uncontrolled: | 0.62 A |
| Depth: | 273 mm |
| Installation: | Pipe |
| Other: | EC-Technologie |
| Permissible medium temperature: | 60 °C |
| Rated power: | 0.068 kw |
| Rated speed: | 3530 |
