Helios Multivent Inline fan MVP 160, Parallel-Twin-Unit
€558.92
Bezahlen Sie sicher und schnell mit:

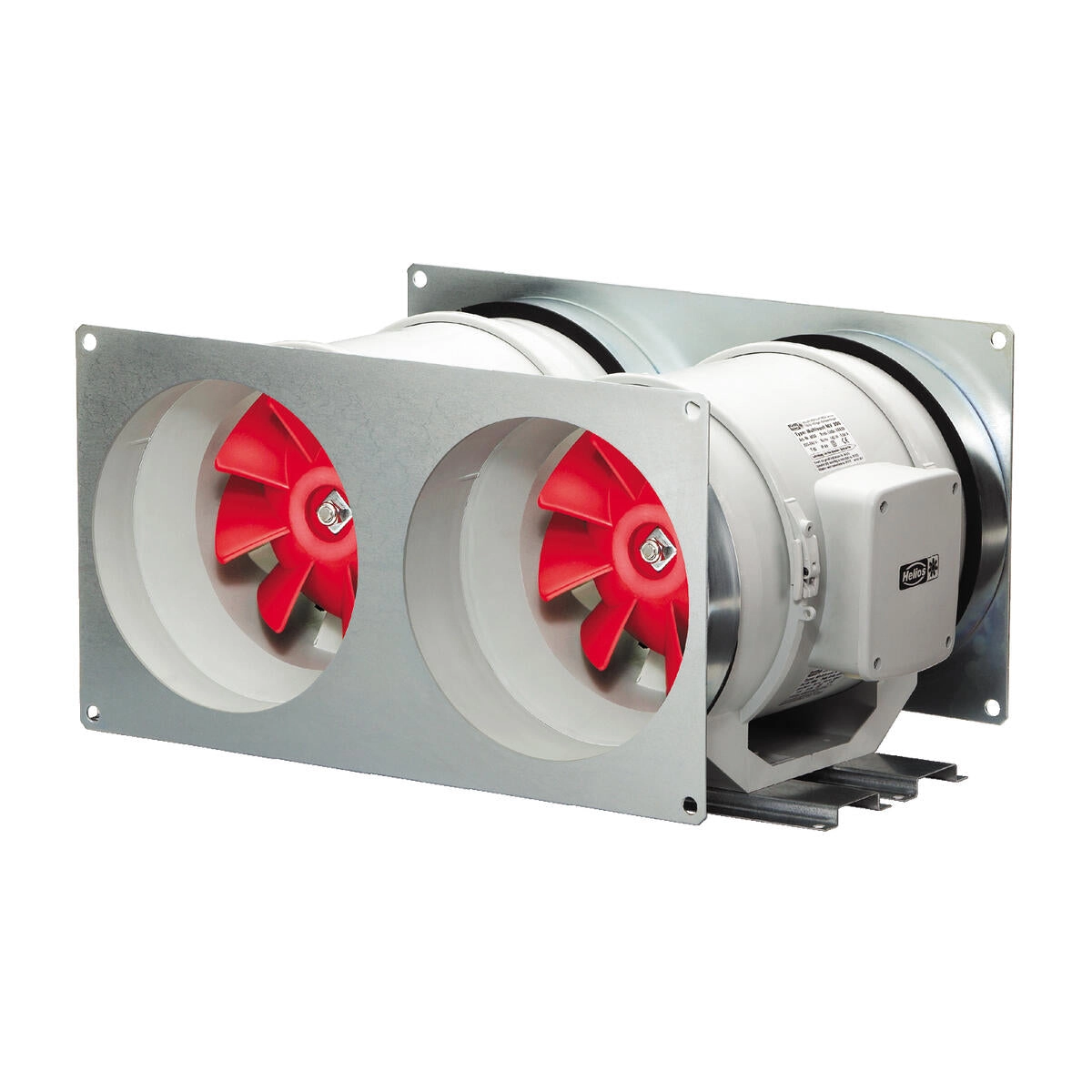

Parallel-Twin-Unit. Two swing-out, parallel arranged MV Fans are through intake- and pressure-side on set, rectangular Duct Connection panels with each other connected and with Mounting rails screwed. Delivery as ready for installation Kit. At Parallelbetrieb (common Control) doubled itself the Volume power.
Housing made of impact- and corrosion-resistant Plastic, Colour light grey, with moulded-on Installation bracket for easy Installation at Wall or Ceiling as well as the Norm Pipe Diameter according to Intake- and Discharge spigot. Through Release the Clamping bracket is the Fan unit with Terminal box in each Position rotatable and for the Maintenance and Cleaning removable. Delivery incl. Wall plug and Screws.
Semi-axial Impeller, eight spatial curved Blades made of Thermoplastic. Vibration-free Operation through dynamically Balancing after Quality grade G 6.3 VDI 2060 and DIN ISO 1940.
Closed, ball-bearing Capacitor motor with Moisture protection, Insulation class F, for Continuous operation. Maintenance- and radio-interference-free. Motor protection through thermal Overload protection in the Winding.
Dokumente
| Degree of protection: | IP 44 |
|---|---|
| Nominal pipe diameter: | 160 mm |
| Height: | 220 mm |
| Width: | 395 mm |
| Material: | Housing made of Plastic; Impeller made of Thermoplastic |
| Airflow rate: | 1100 m³/h |
| Color: | Housing: light grey; Impeller: red |
| Current uncontrolled: | 0,36/0,52 A |
| Depth: | 300 mm |
| Installation: | Pipe; Wall, Ceiling |
| Insulation class: | B |
| Number of poles: | 2/2 |
| Permissible medium temperature: | 60 °C |
| Rated power: | 0,08/0,11 kW |
| Rated speed: | 1520 / 2290 |
