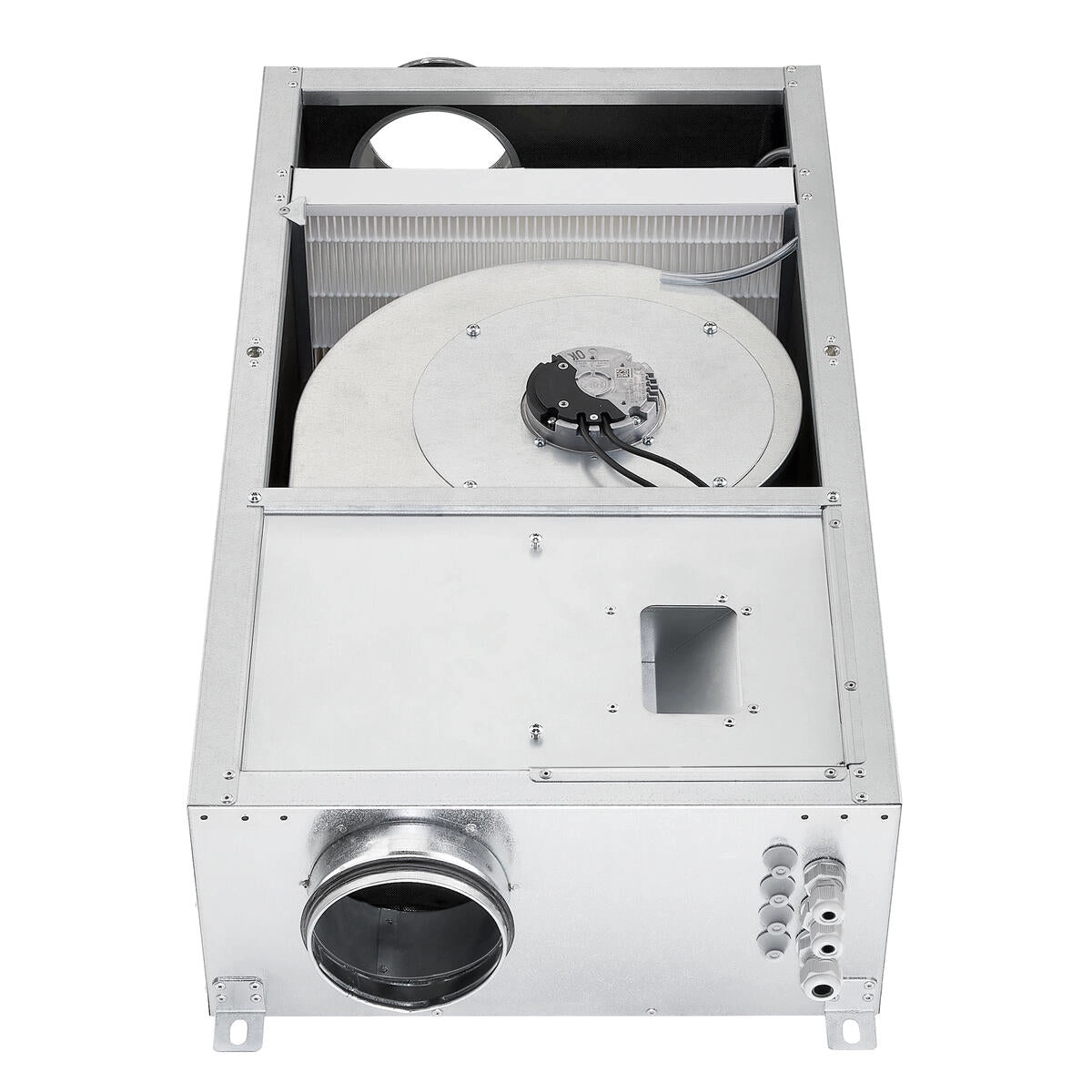

Helios Outside-air box ALB EC 200 EH - with E Heating coil
€1,858.54
Bezahlen Sie sicher und schnell mit:
Outdoor-air box with air filter, heating coil and sound-insulating internal lining.
Electric heating coil with enclosed tubular heating element made of stainless steel and low surface temperature for heating the outdoor air to a specified setpoint temperature. Simple operation via control unit (incl. 10 m cable). Filter monitoring using DDS differential-pressure switch (accessory) possible. Large-area ePM2.5 60% filter for long maintenance intervals. Low-profile housing made of galvanised sheet steel, thermally and acoustically insulated on all sides with 30 mm mineral wool. For servicing, the cover can be opened easily using 2 safety screw fasteners. The unit has protection rating IP 44.
Low-noise, high-performance centrifugal fan in scroll housing. EC motor/impeller unit made of galvanised sheet steel, accessible for servicing.
Driven by a maintenance-free, energy-saving EC external-rotor motor in IP 44, sealed low-noise ball bearings with long-term lubrication. Demand-based operation of an EC extract-air fan via the ALB EC remote control is possible.
Dokumente
| Degree of protection: | IP 44 |
|---|---|
| Nominal pipe diameter: | 200 mm |
| Height: | 295 mm |
| Width: | 510 mm |
| Material: | Housing made of galvanized sheet steel |
| Airflow rate: | 720 m³/h |
| Current uncontrolled: | 13 A |
| Depth: | 862 mm |
| Other: | Schallisoliert |
| Permissible medium temperature: | 40 °C |
| Rated power: | 5.12 kW |
| Rated speed: | 2910 |
