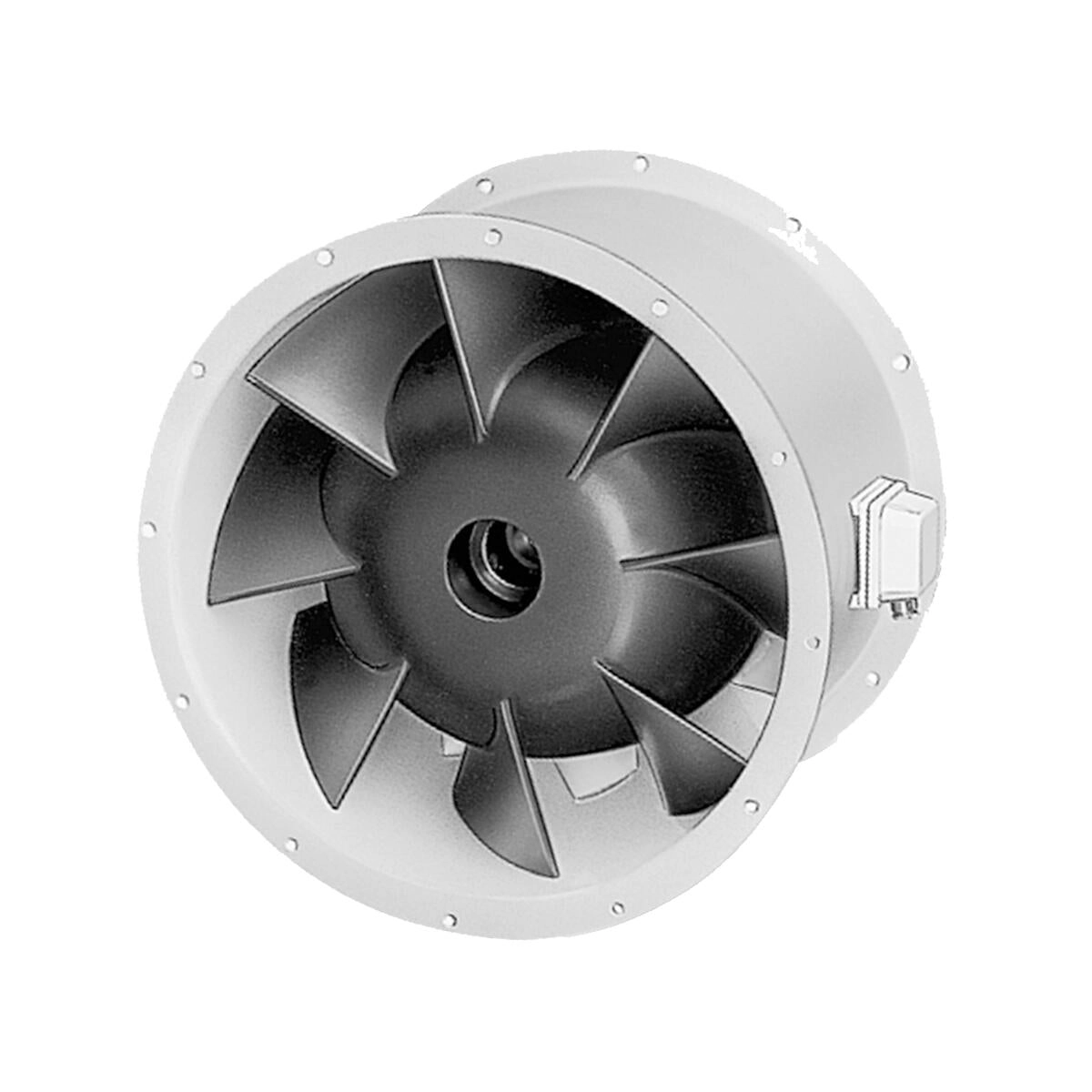

Helios RADAX High pressure Inline fan VARD 225/4/2 TK
€1,095.45
Bezahlen Sie sicher und schnell mit:
High pressure Inline fan with cylindrical Pipe sleeve, on both sides Flange, directly driven.
Cylindrical Pipe made of galvanized sheet steel, with connections on both sides moulded-on Flange, Hole pattern after DIN 24155, installed Downstream guide vane.
Semi-axial Impeller, eight spatial curved Blades made of Thermoplastic. Vibration-free Operation through dynamically Balancing after Quality grade G 6.3 VDI 2060 and DIN ISO 1940.
Three phase current Squirrel cage rotor Motor, with Dahlander winding (pole-changing), closed Design, maintenance-free, sealed, low-noise Ball bearings with Lifetime lubrication.
Dokumente
| Degree of protection: | IP 54 |
|---|---|

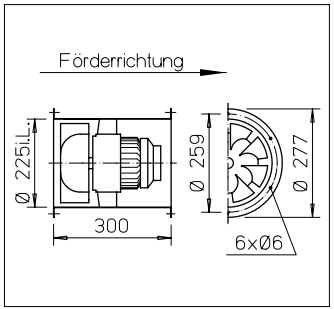

| Nominal pipe diameter: | 225 mm |
| Height: | 277 mm |
| Width: | 277 mm |
| Material: | Housing made of sheet steel, galvanized; Impeller made of Thermoplastic |
| Airflow rate: | 1800 m³/h |
| Controllability: | Transformer / Electrically |
| Current uncontrolled: | 0,22/0,57 A |
| Depth: | 300 mm |
| Installation: | Pipe |
| Number of poles: | 4/2 |
| Rated power: | 0,06/0,3 kW |
| Rated speed: | 1460 / 2800 |
