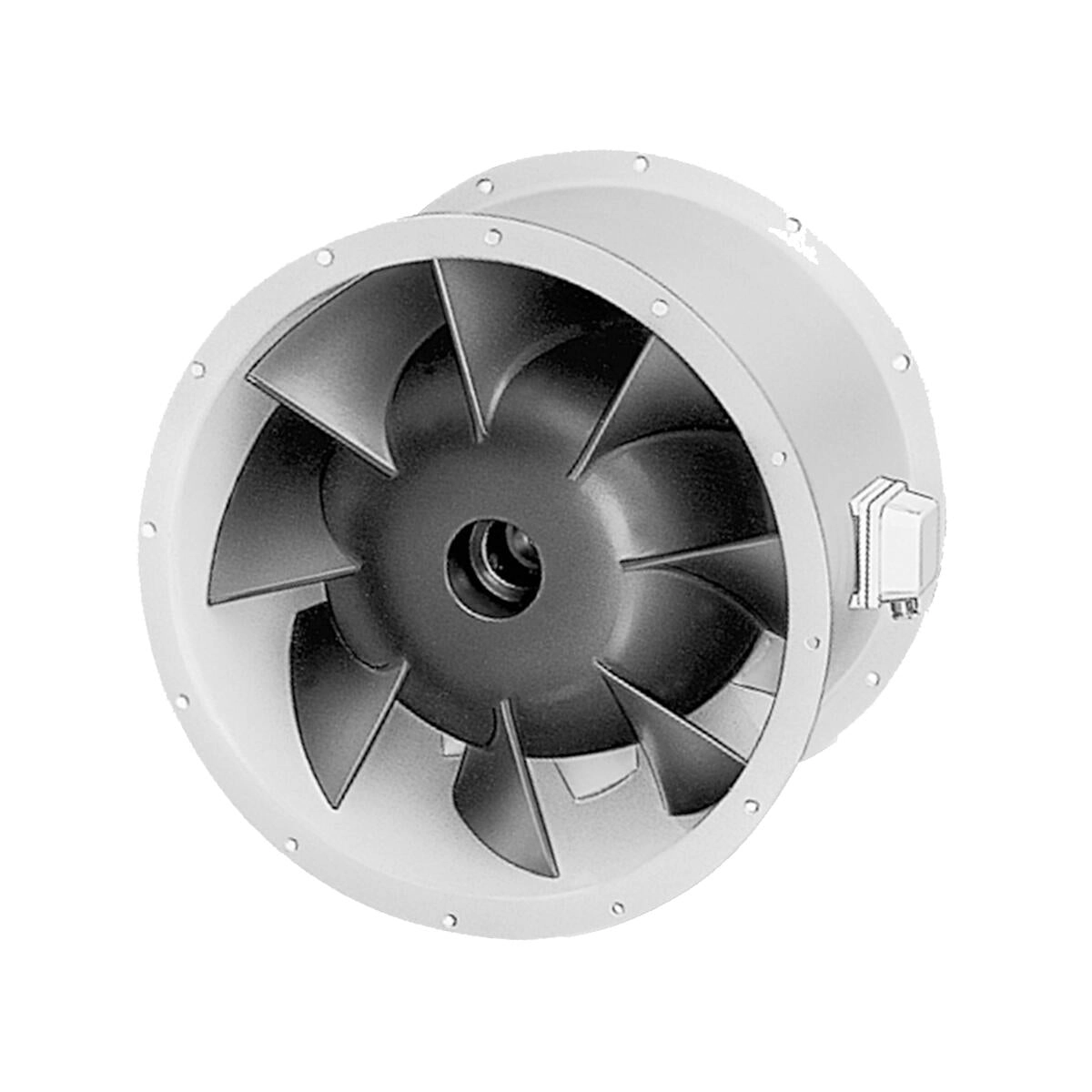

Helios RADAX High pressure Inline fan VARD 225/4 TK
€905.53
Bezahlen Sie sicher und schnell mit:
High pressure Inline fan with cylindrical Pipe sleeve, on both sides Flange, directly driven.
Cylindrical Pipe made of galvanized sheet steel, with connections on both sides moulded-on Flange, Hole pattern after DIN 24155, installed Downstream guide vane.
Semi-axial Impeller, eight spatial curved Blades made of Thermoplastic. Vibration-free Operation through dynamically Balancing after Quality grade G 6.3 VDI 2060 and DIN ISO 1940.
Three phase current Squirrel cage rotor Motor through Voltage reducer Speed controllable, Thermal contacts, closed Design, maintenance-free, sealed, low-noise Ball bearings with Lifetime lubrication.
Dokumente
| Degree of protection: | IP 54 |
|---|---|
| Nominal pipe diameter: | 225 mm |
| Height: | 277 mm |
| Width: | 277 mm |
| Material: | Housing made of sheet steel, galvanized; Impeller made of Thermoplastic |
| Airflow rate: | 880 m³/h |
| Controllability: | Transformer / Electrically |
| Current uncontrolled: | 0,2/0,2 A |
| Depth: | 300 mm |
| Installation: | Pipe |
| Number of poles: | 4 |
| Permissible medium temperature: | 40 °C |
| Rated power: | 0.1 kw |
| Rated speed: | 1420 |
