Helios RADAX High pressure Inline fan VARD 250/4 TK
€956.40
Bezahlen Sie sicher und schnell mit:

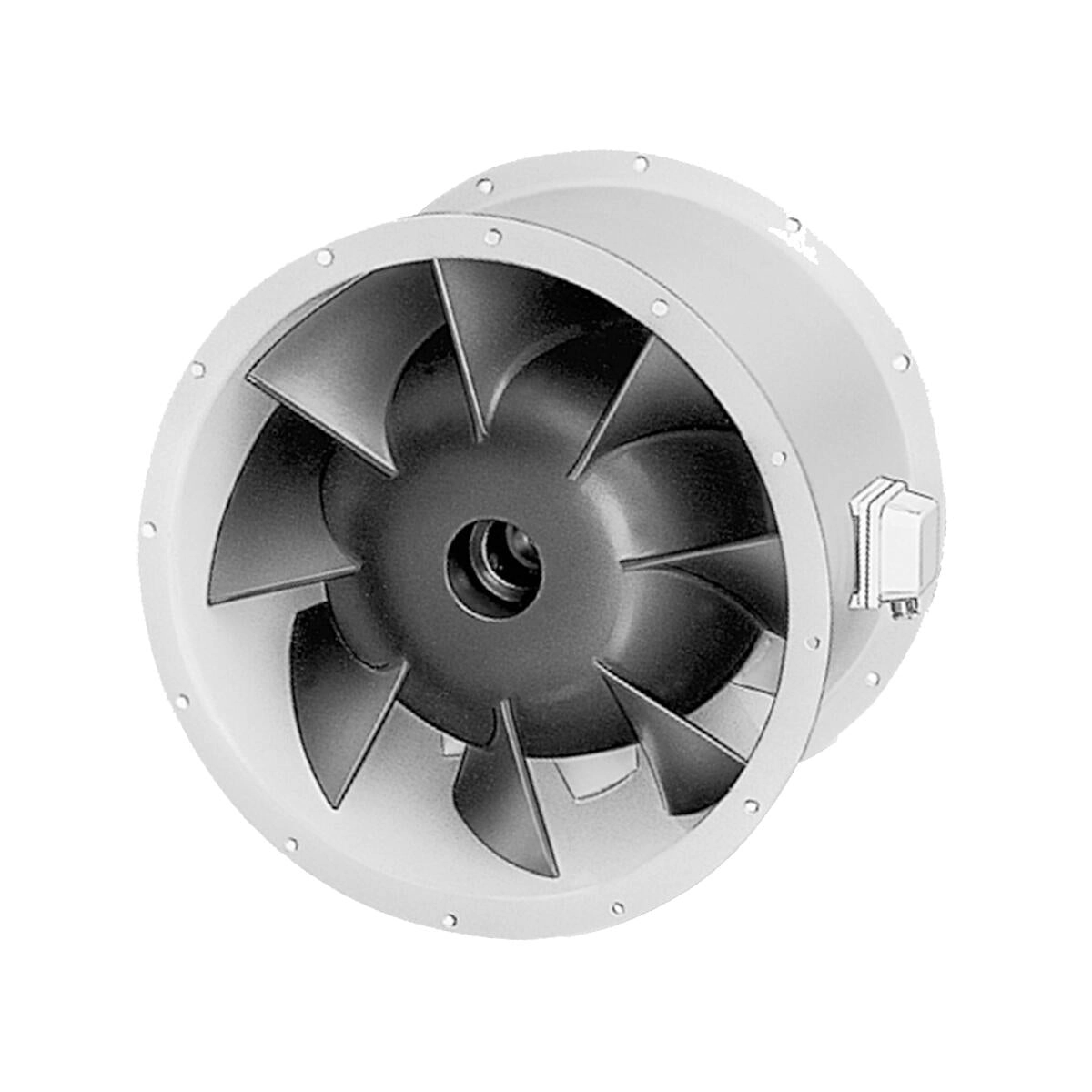

High pressure Inline fan with cylindrical Pipe sleeve, on both sides Flange, directly driven.
Cylindrical Pipe made of galvanized sheet steel, with connections on both sides moulded-on Flange, Hole pattern after DIN 24155, installed Downstream guide vane. Semi-axial Impeller, eight spatial curved Blades made of Thermoplastic.
Vibration-free Operation through dynamically Balancing after Quality grade G 6.3 VDI 2060 and DIN ISO 1940. Three phase current Squirrel cage rotor Motor through Voltage reducer Speed controllable, Thermal contacts, closed Design, maintenance-free, sealed, low-noise Ball bearings with Lifetime lubrication.
Dokumente
| Degree of protection: | IP 54 |
|---|---|
| Nominal pipe diameter: | 250 mm |
| Height: | 305 mm |
| Width: | 305 mm |
| Material: | Housing made of sheet steel, galvanized; Impeller made of Thermoplastic |
| Airflow rate: | 1250 m³/h |
| Current uncontrolled: | 0.3 A |
| Depth: | 300 mm |
| Installation: | Pipe |
| Number of poles: | 4 |
| Permissible medium temperature: | 40 °C |
| Rated frequency: | 50 Hz |
| Rated power: | 0.09 kw |
| Rated speed: | 1410 |
