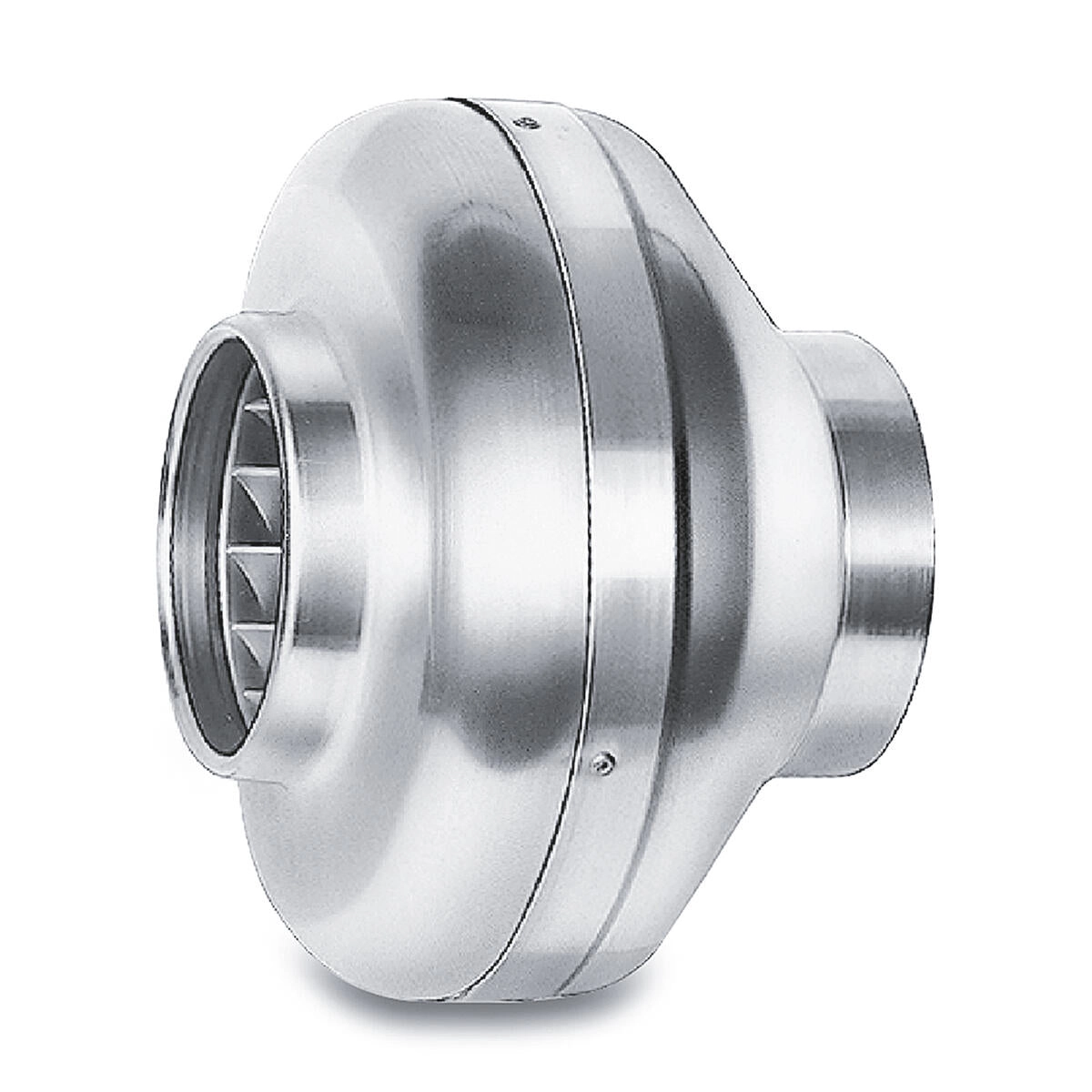

Helios Radial inline fan RR 100 A
€140.41
Bezahlen Sie sicher und schnell mit:
Radial inline fan for the directly Installation in the Pipe system. For the Funding medium and smaller Air volume against high Resistors.
Housing made of galvanized sheet steel with round Connection spigot on Standard pipes matched.
Centrifugal impeller with backward curved Blades made of Plastic. Directly on Motor pressed and as Unit dynamically made of balanced. Low-noise, high Efficiency.
Single-phase AC external rotor motor closed Design, maintenance-free, Speed through Voltage reducer controllable, installed Thermal contacts, sealed, low-noise Ball bearings with Lifetime lubrication.
Dokumente
| Degree of protection: | IP 44 |
|---|---|
| Nominal pipe diameter: | 100 mm |
| Height: | 243 mm |
| Width: | 243 mm |
| Material: | Housing made of galvanized sheet steel; Impeller made of Plastic |
| Airflow rate: | 250 m³/h |
| Controllability: | Transformer / Electrically |
| Current uncontrolled: | 0.18 A |
| Depth: | 188 mm |
| Installation: | Pipe |
| Number of poles: | 4 |
| Permissible medium temperature: | 60 °C |
| Rated power: | 0.041 kw |
| Rated speed: | 1730 |
