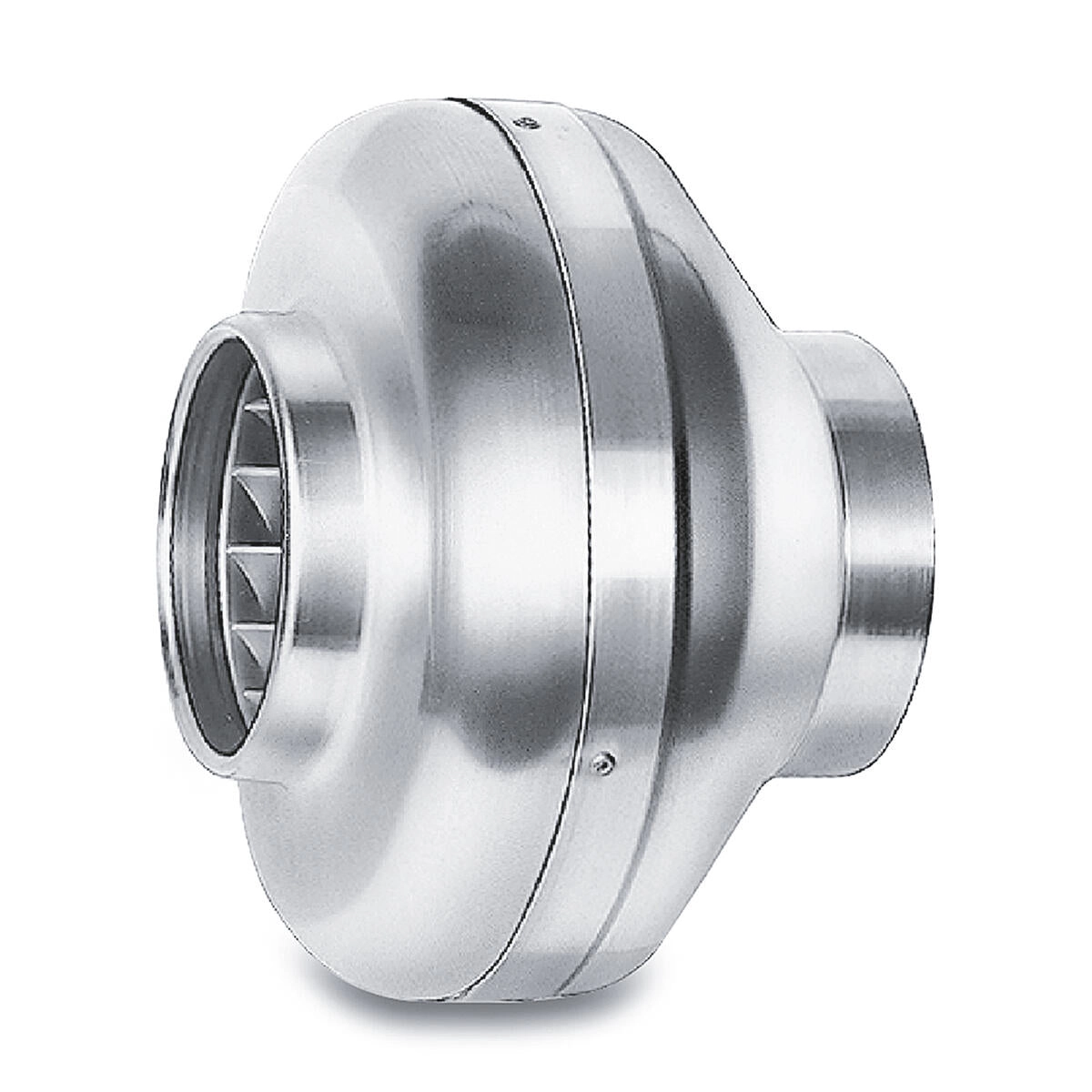

Helios Radial inline fan RR 100 C
€147.19
Bezahlen Sie sicher und schnell mit:
Centrifugal inline fan with 2 performance levels for direct installation in the duct system. For conveying medium and low airflow rates against high resistance.
Housing made of galvanised sheet steel with round connection spigots sized for standard ducts.
Centrifugal impeller with backward-curved plastic blades. Press-fitted directly onto the motor and dynamically balanced as a unit. Low-noise, high efficiency.
Single-phase AC external-rotor motor, enclosed design, maintenance-free, integrated thermal contacts, sealed low-noise ball bearings with long-term lubrication.
Output control: using electronic controller or step transformer, or two-stage operation with type DS 2/2 (accessory, Art. No.: 1267).
Dokumente
| Degree of protection: | IP 44 |
|---|---|
| Nominal pipe diameter: | 100 mm |
| Height: | 243 mm |
| Width: | 243 mm |
| Material: | Housing made of galvanized sheet steel; Impeller made of Plastic |
| Airflow rate: | 317 m³/h |
| Controllability: | Transformer / Electrically |
| Current uncontrolled: | 0,18/0,27 A |
| Depth: | 188 mm |
| Installation: | Pipe |
| Number of poles: | 2 |
| Permissible medium temperature: | 60 °C |
| Rated power: | 0,04/0,062 kW |
| Rated speed: | 1655 / 2530 |
