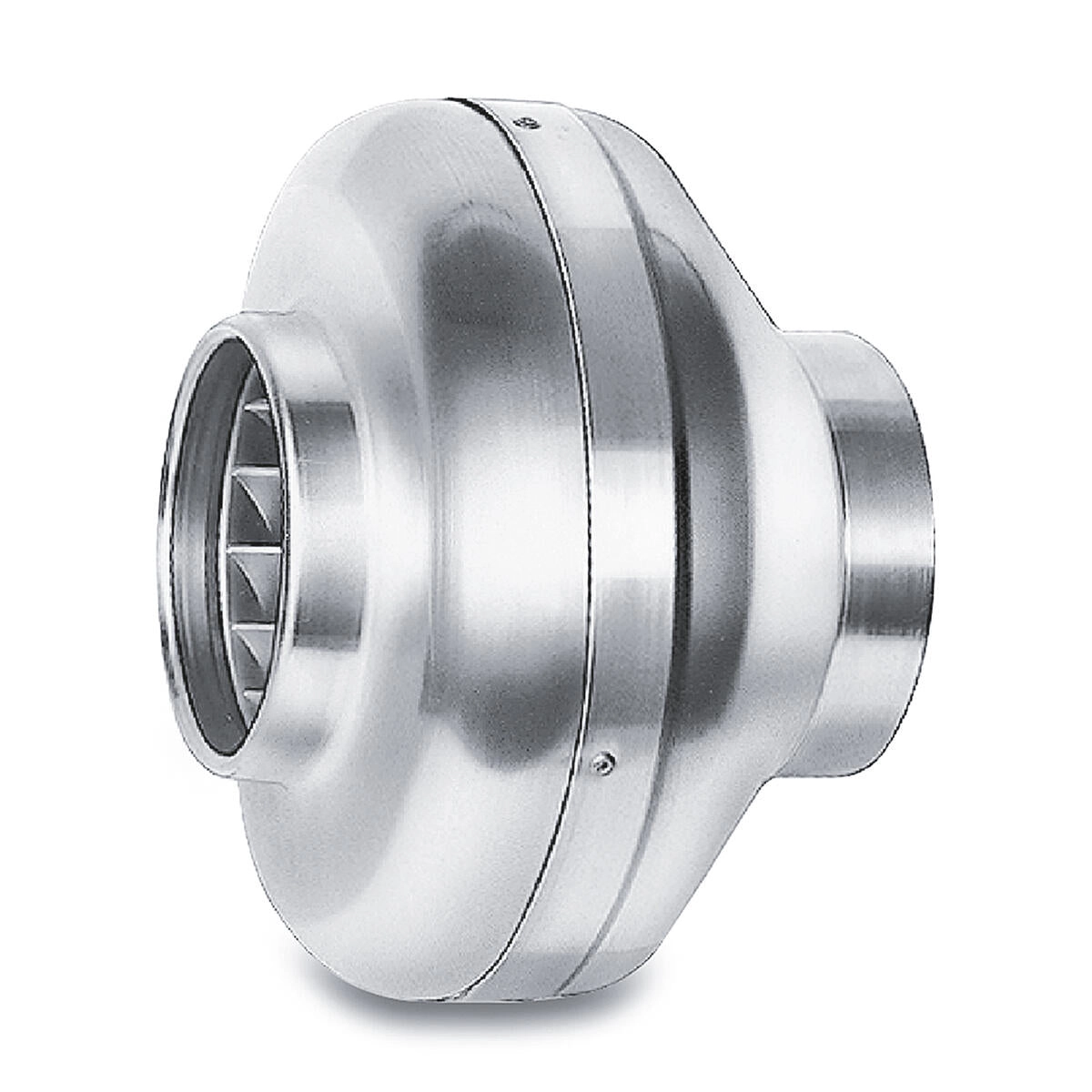

Helios Radial inline fan RR 125 C
€156.69
Bezahlen Sie sicher und schnell mit:
Radial inline fan with 2 Performance level for the directly Installation in the Pipe system. For the Funding medium and smaller Air volume against high Resistors.
Housing made of galvanized sheet steel with round Connection spigot on Standard pipes matched.
Centrifugal impeller with backward curved Blades made of Plastic. Directly on Motor pressed and as Unit dynamically made of balanced. Low-noise, high Efficiency.
Single-phase AC external rotor motor closed Design, maintenance-free, installed Thermal contacts, sealed, low-noise Ball bearings with Lifetime lubrication.
Power control: using electronic Actuator or Multi-step transformer or Two stage operation with Type DS 2/2 (Accessories, Art.Nr.: 1267).
Dokumente
| Degree of protection: | IP 44 |
|---|---|
| Nominal pipe diameter: | 125 mm |
| Height: | 243 mm |
| Width: | 243 mm |
| Material: | Housing made of galvanized sheet steel; Impeller made of Plastic |
| Airflow rate: | 439 m³/h |
| Controllability: | Transformer / Electrically |
| Current uncontrolled: | 0,18/0,27 A |
| Depth: | 188 mm |
| Installation: | Pipe |
| Number of poles: | 2 |
| Permissible medium temperature: | 70 °C |
| Rated power: | 0,040/0,062 kW |
| Rated speed: | 1655 / 2480 |
