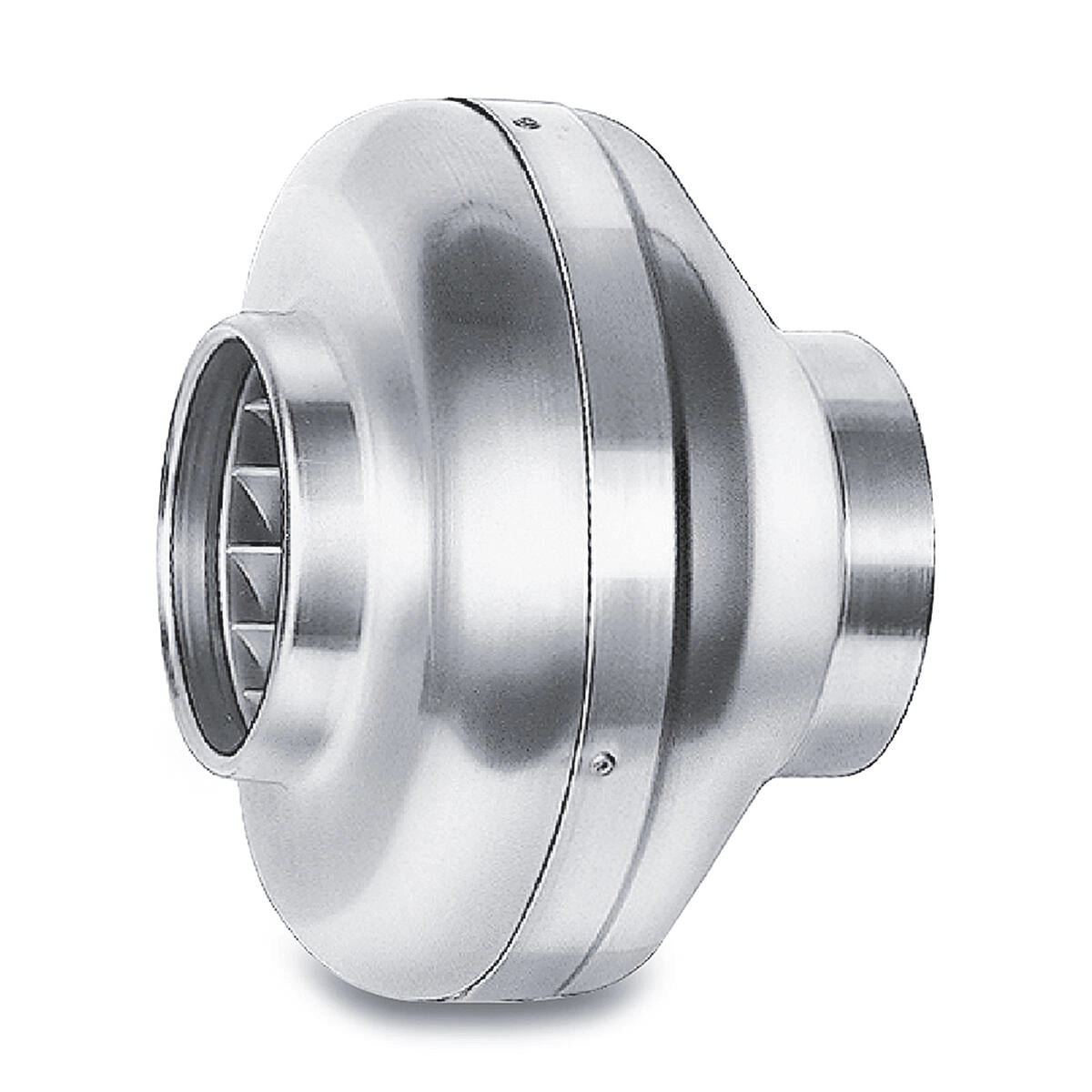

Helios Radial inline fan RR 200 B
€250.97
Bezahlen Sie sicher und schnell mit:
Radial inline fan for the directly Installation in the Pipe system. For the Funding medium and smaller Air volume against high Resistors.
Housing made of galvanized sheet steel with round Connection spigot on Standard pipes matched.
Centrifugal impeller with backward curved Blades made of Plastic. Directly on Motor pressed and as Unit dynamically made of balanced. Low-noise, high Efficiency.
Single-phase AC external rotor motor closed Design, maintenance-free, Speed through Voltage reducer controllable, installed Thermal contacts, sealed, low-noise Ball bearings with Lifetime lubrication.
Dokumente
| Degree of protection: | IP 44 |
|---|---|
| Nominal pipe diameter: | 200 mm |
| Height: | 345 mm |
| Width: | 345 mm |
| Material: | Housing made of galvanized sheet steel; Impeller made of Plastic |
| Airflow rate: | 980 m³/h |
| Controllability: | Transformer / Electrically |
| Current uncontrolled: | 0.63 A |
| Depth: | 228 mm |
| Installation: | Pipe |
| Number of poles: | 2 |
| Permissible medium temperature: | 60 °C |
| Rated power: | 0.145 kW |
| Rated speed: | 2750 |
