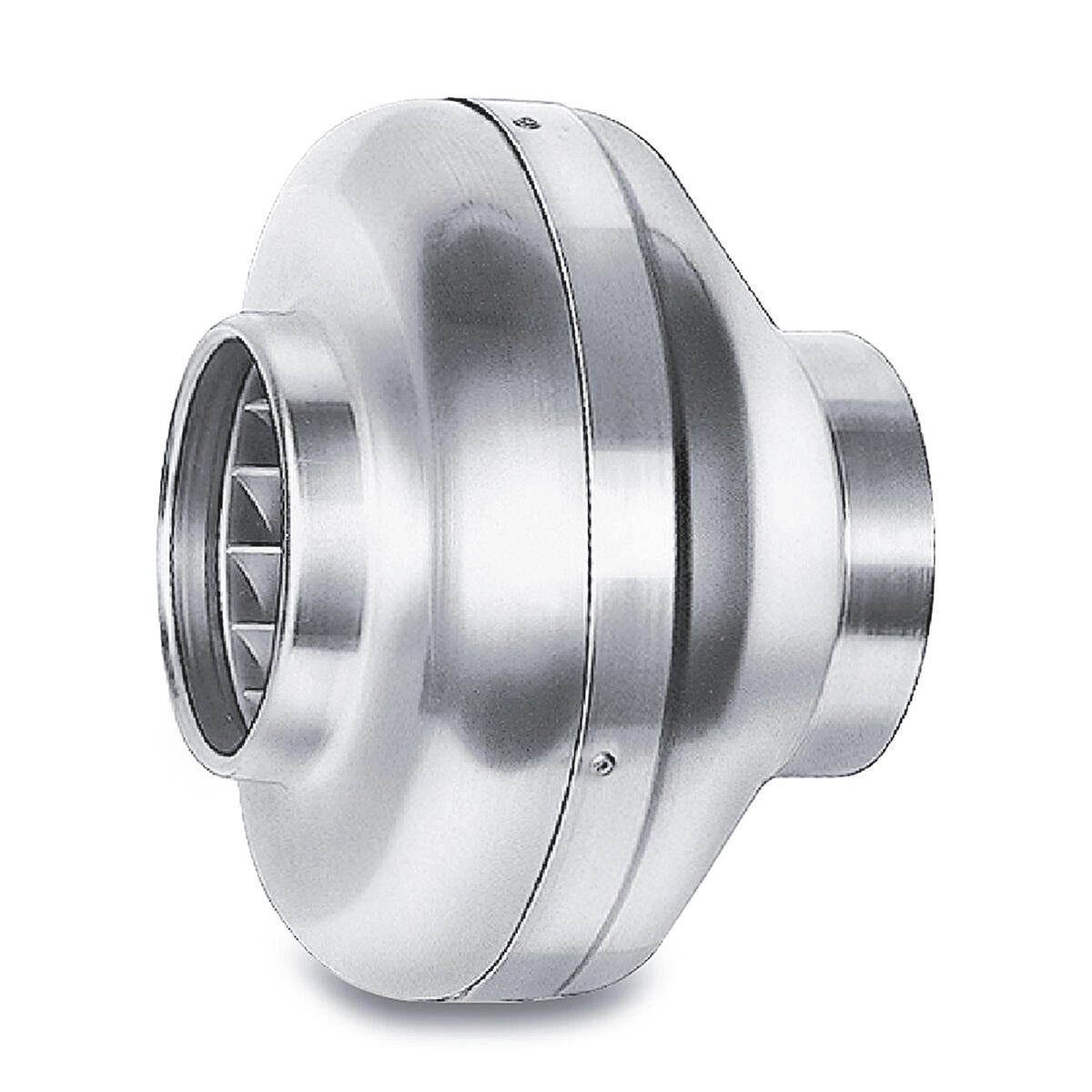

Helios Radial inline fan RR EC 125
€323.01
Bezahlen Sie sicher und schnell mit:
EC centrifugal inline fan for direct installation in the duct system.
Housing made of galvanised sheet steel with round connection spigots sized for standard ducts.
Centrifugal impeller with backward-curved plastic blades. Press-fitted directly onto the motor and dynamically balanced as a unit. Low-noise, high efficiency.
Energy-saving, speed-controllable EC external-rotor motor with protection rating IP 44. Maintenance-free, radio-interference-free and fitted with ball bearings. Integrated electronic temperature monitoring for EC motor and electronics. Supplied as standard with an internal potentiometer for setting any fan speed between minimum and maximum speed. Infinitely variable speed control using an external potentiometer or continuous speed control with the EUR-EC universal control system. Connection via standard terminal box (IP54) on the outside of the housing.
Dokumente
| Degree of protection: | IP 44 |
|---|---|
| Nominal pipe diameter: | 125 mm |
| Height: | 243 mm |
| Width: | 243 mm |
| Material: | Housing made of Plastic; Impeller made of Plastic |
| Airflow rate: | 570 m³/h |
| Controllability: | Electrically |
| Current uncontrolled: | 0.83 A |
| Depth: | 188 mm |
| Installation: | Pipe |
| Other: | EC-Technologie |
| Permissible medium temperature: | 60 °C |
| Rated power: | 0.1 kw |
| Rated speed: | 3600 |
