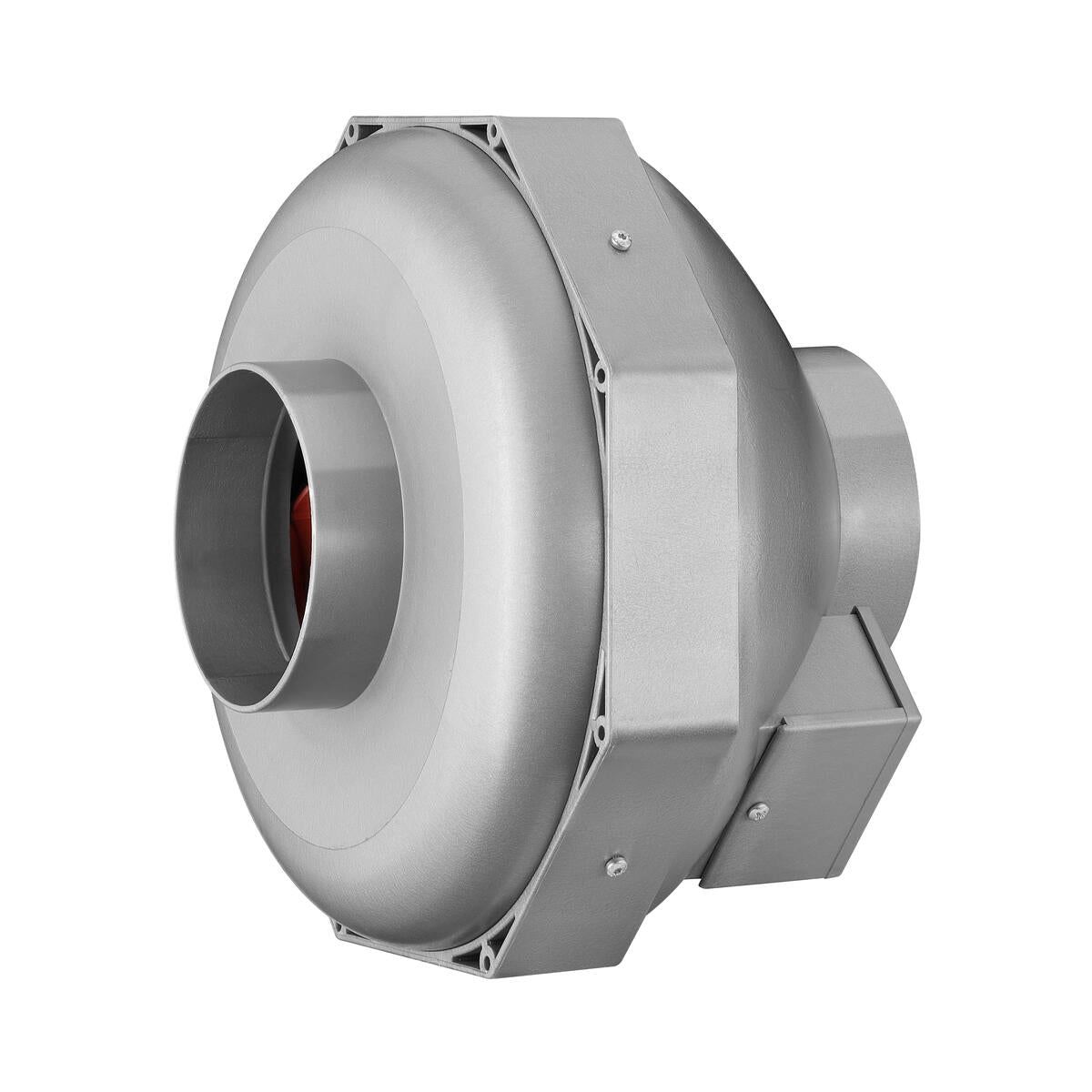

Helios Radial inline fan RRK 125
€153.30
Bezahlen Sie sicher und schnell mit:
RADAX RR centrifugal inline fan for direct installation in the duct system.
Housing made of impact-resistant plastic with round connection spigots sized for standard ducts.
High-performance centrifugal impeller with backward-curved plastic blades. Vibration-free operation through dynamic balancing to quality grade G 6.3 in accordance with VDI 2060 and DIN ISO 1940.
Drive: single-phase AC external-rotor motor with integrated thermal contacts connected in series with the winding, enclosed design, maintenance-free, sealed low-noise ball bearings with long-term lubrication.
Dokumente
| Degree of protection: | IP 44 |
|---|---|
| Nominal pipe diameter: | 125 mm |
| Height: | 245 mm |
| Width: | 245 mm |
| Material: | Housing made of Plastic; Impeller made of Plastic |
| Airflow rate: | 390 m³/h |
| Controllability: | Electrically |
| Current uncontrolled: | 0.19 A |
| Depth: | 220 mm |
| Installation: | Pipe |
| Number of poles: | 2 |
| Permissible medium temperature: | 60 °C |
| Rated power: | 0.042 kw |
| Rated speed: | 2635 |
