Helios Radial inline fan SVR 160 K SlimVent
€330.33
Bezahlen Sie sicher und schnell mit:

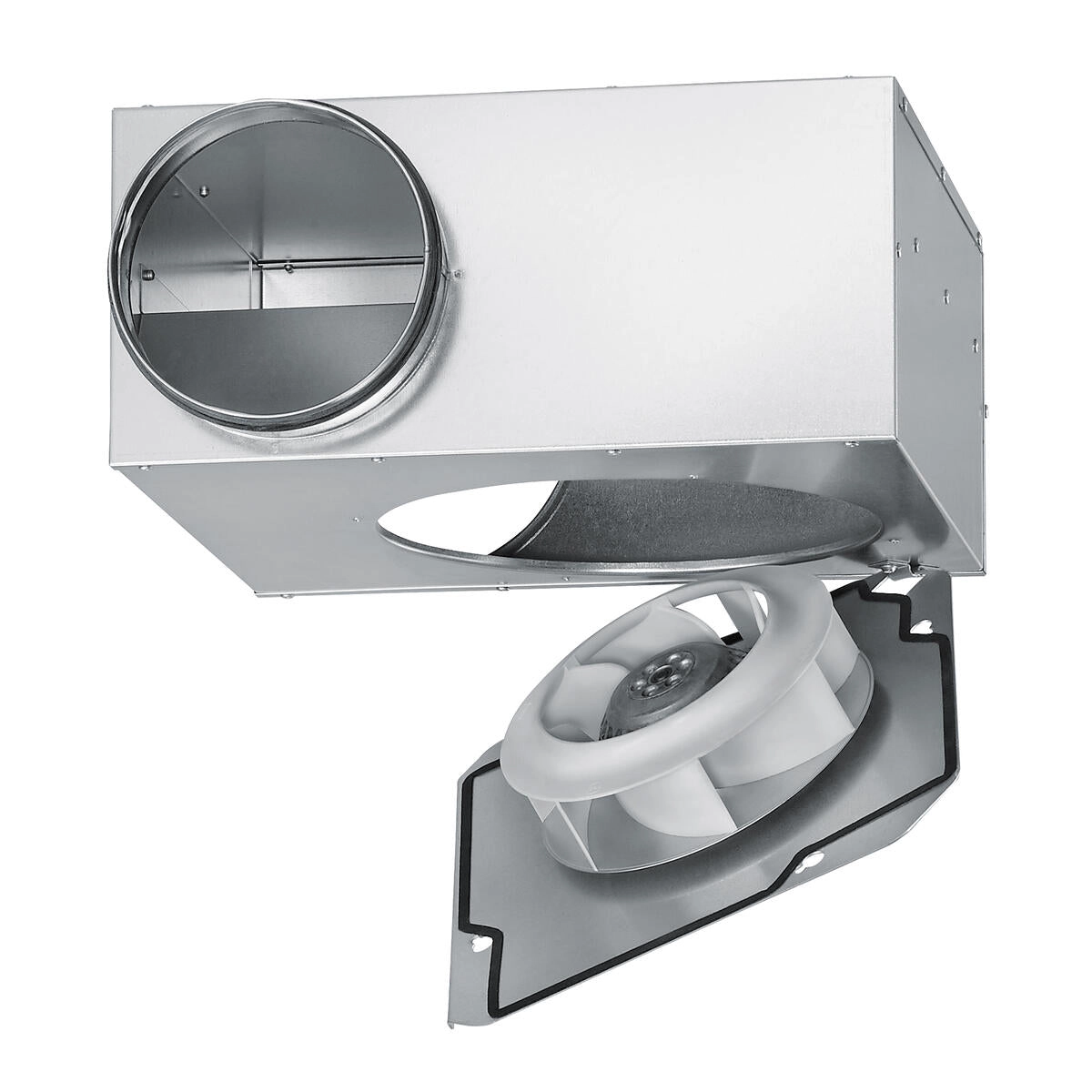

Low-profile SlimVent SVR 160 centrifugal inline fan with 2 performance levels, airflow rate 450/310 m³/h. Suitable for ventilating damp rooms, toilets and similar spaces in industrial, commercial and residential applications.
Low-profile compact housing made of galvanised sheet steel. Supplied as standard with inlet and outlet connection spigots and lip seals for standard duct diameters. Motor/impeller unit can be swung out for cleaning and servicing.
Impeller: Energy-saving centrifugal impeller with backward-curved blades made of high-quality plastic. Dynamically balanced for low-noise operation.
Drive: Maintenance-free, enclosed, ball-bearing energy-saving motor with thermal overload protection in the winding.
Control: using electronic speed controller ESU1/ESA1 (Art. No.: 0236/0238) or transformer speed controller TSW 1.5 (Art. No.: 1495). Electrical connection via terminal box (IP55) mounted externally on the housing.
Dokumente
| Degree of protection: | IP 44 |
|---|---|
| Nominal pipe diameter: | 160 mm |
| Height: | 196 mm |
| Width: | 390 mm |
| Material: | Housing made of galvanized sheet steel; Impeller made of Plastic |
| Airflow rate: | 450 m³/h |
| Controllability: | Transformer / Electrically |
| Current uncontrolled: | 0,19/0,26 A |
| Depth: | 362 mm |
| Installation: | Pipe |
| Other: | Mit Rohranschluss |
| Permissible medium temperature: | 60 °C |
| Rated power: | 0,042/0,061 kW |
| Rated speed: | 1740 / 2550 |
