Helios Radial inline fan SVR 200 K SlimVent
€472.78
Bezahlen Sie sicher und schnell mit:
Flat Centrifugal inline fan SlimVent SVR 200, with 2 Performance level 830/540 m³/h Airflow rate. Suitable for the Ventilation of Wet rooms, Toilets, among other applications. in Industry, Commercial applications and Residential sector.

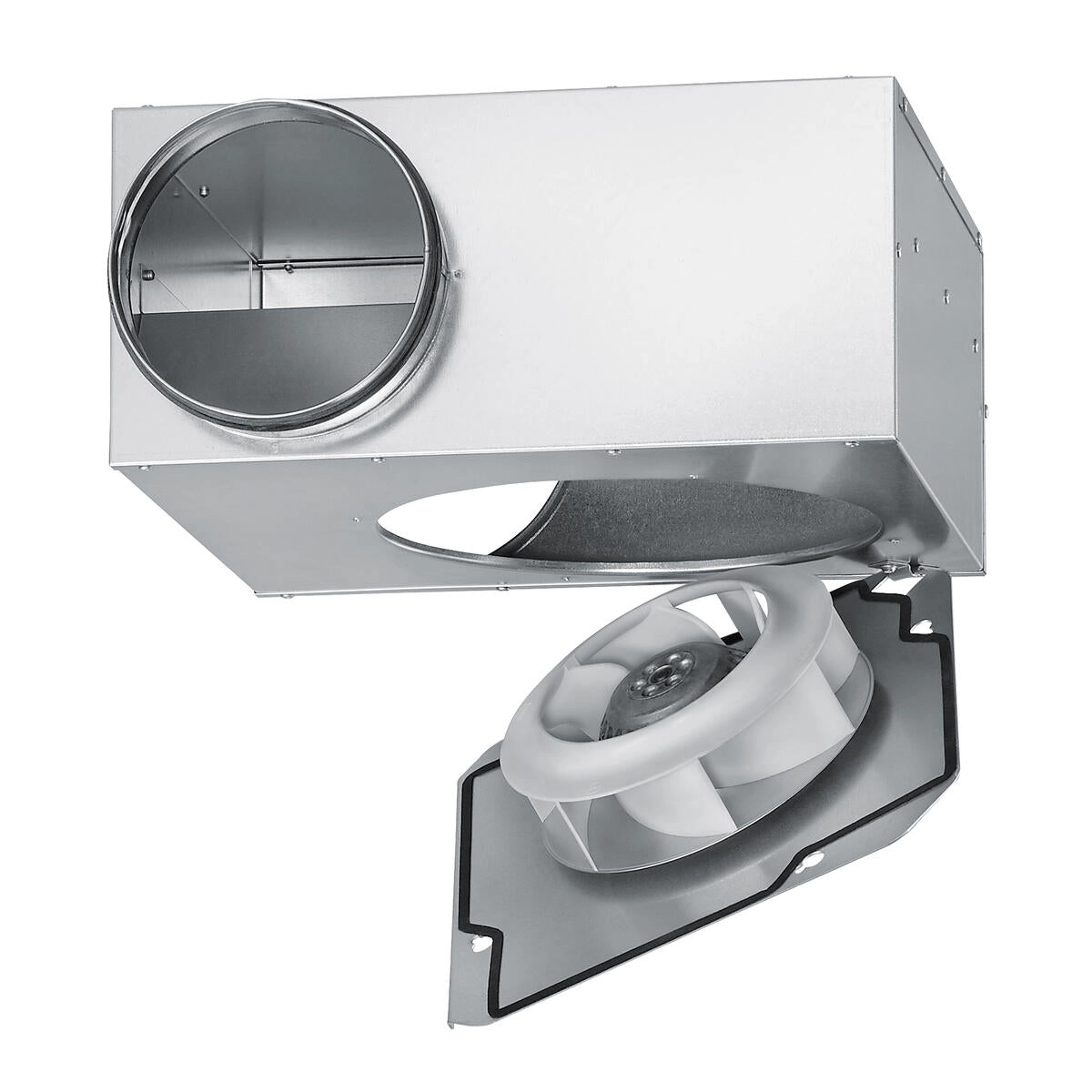

Flat Housing in compact Design made of galvanized sheet steel. As standard Delivery intake- and pressure-side with Connection spigot and Lip seal for Standard pipe Diameter. Motor-impeller unit made of pivoting for the Cleaning and Revision.
Impeller: Energy-saving Radial impeller with backward curved Blades made of high-quality plastic. For low-noise Operation dynamically balanced.
Drive: Maintenance-free, closed, ball-bearing Energy-saving motor with thermal Overload protection in the Winding.
Control: using electronic Speed controller ESU1/ESA1 (Art.Nr.: 0236/0238) or Transformer speed controller TSW 1,5 (Art.Nr.: 1495). Electrical Connection via outside at the Housing horizontal Terminal box (IP55).
Dokumente
| Degree of protection: | IP 44 |
|---|---|
| Nominal pipe diameter: | 200 mm |
| Height: | 236 mm |
| Width: | 390 mm |
| Material: | Housing made of galvanized sheet steel; Impeller made of Plastic |
| Airflow rate: | 980 m³/h |
| Controllability: | Transformer / Electrically |
| Current uncontrolled: | 0,67/0,81 A |
| Depth: | 372 mm |
| Installation: | Pipe |
| Other: | Mit Rohranschluss |
| Permissible medium temperature: | 50 °C |
| Rated power: | 0.154 kw |
| Rated speed: | 2730 |
