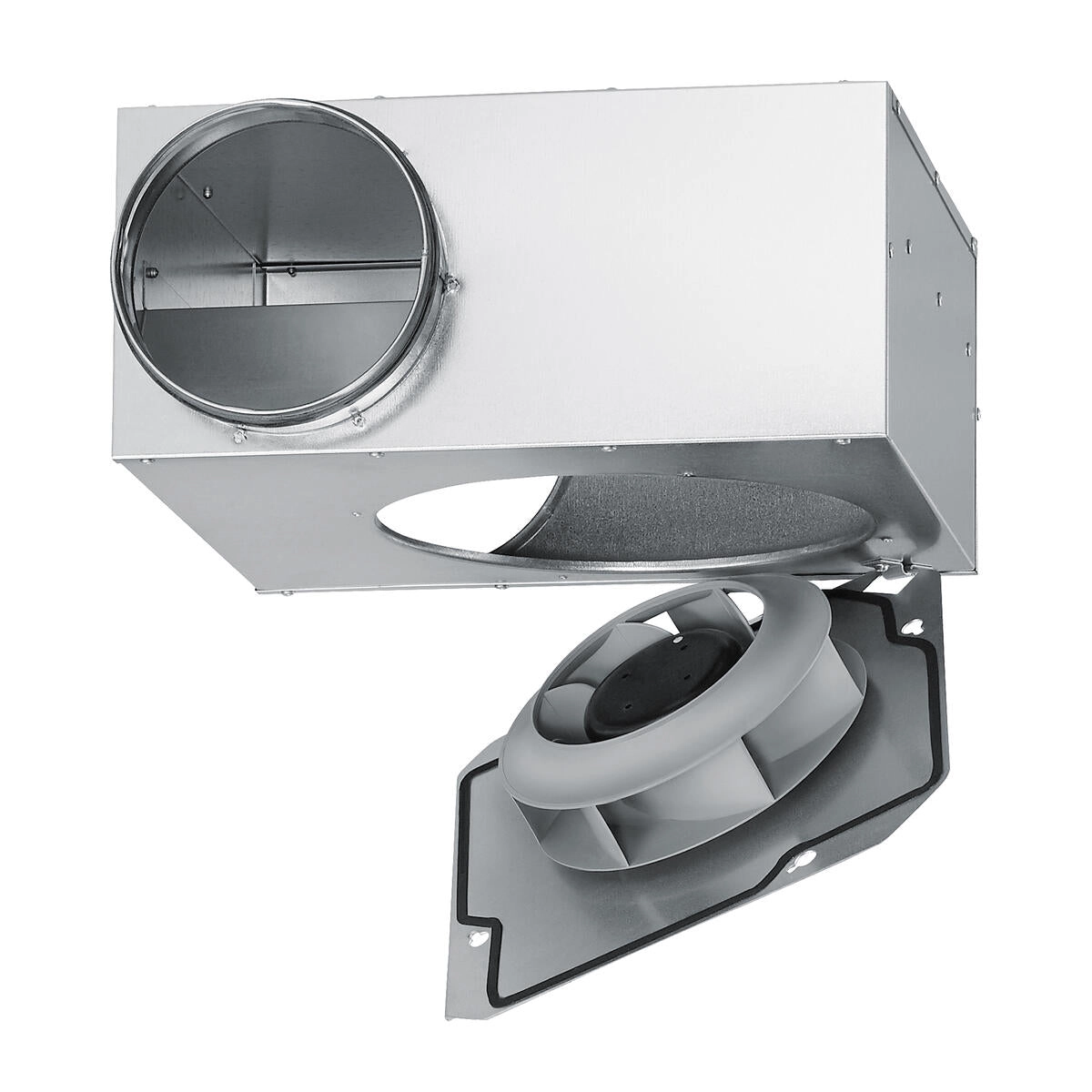

Helios Radial inline fan SVR EC 160 A SlimVent EC
€571.77
Bezahlen Sie sicher und schnell mit:
EC Radial inline fan flat and compact Design for directly Zwischensetzen in Pipe system.
Flat Housing in compact Design made of galvanized sheet steel. As standard Delivery intake- and pressure-side with Connection spigot and Lip seal for Standard pipe Diameter. Motor-impeller unit made of pivoting for the Cleaning and Revision.
Impeller: Energy-saving Radial impeller with backward curved Blades made of high-quality plastic. For low-noise Operation dynamically balanced.
Drive through energy-saving, speed-controllable EC external rotor motor in Degree of protection IP54 with highest Efficiency. Maintenance- and radio-interference-free, ball-bearing. Integrated electronic Temperature monitoring for EC motor and Electronics. As standard with a internal Potentiometer for the Setting a any Fan speed between min. and max. Speed. Stepless Speed control with external Potentiometer or stepless Speed control with Universal control system EUR-EC. Connection via as standard Terminal box (IP54) at fitted Cable installed.
Dokumente
| Degree of protection: | IP 44 |
|---|---|
| Nominal pipe diameter: | 160 mm |
| Height: | 198 mm |
| Width: | 390 mm |
| Material: | Housing made of galvanized sheet steel; Impeller made of Plastic |
| Airflow rate: | 580 m³/h |
| Controllability: | Electrically |
| Current uncontrolled: | 0.81 A |
| Depth: | 362 mm |
| Installation: | Pipe |
| Other: | EC-Technologie; mit Rohranschluss |
| Permissible medium temperature: | 60 °C |
| Rated power: | 0.1 kw |
| Rated speed: | 3530 |
