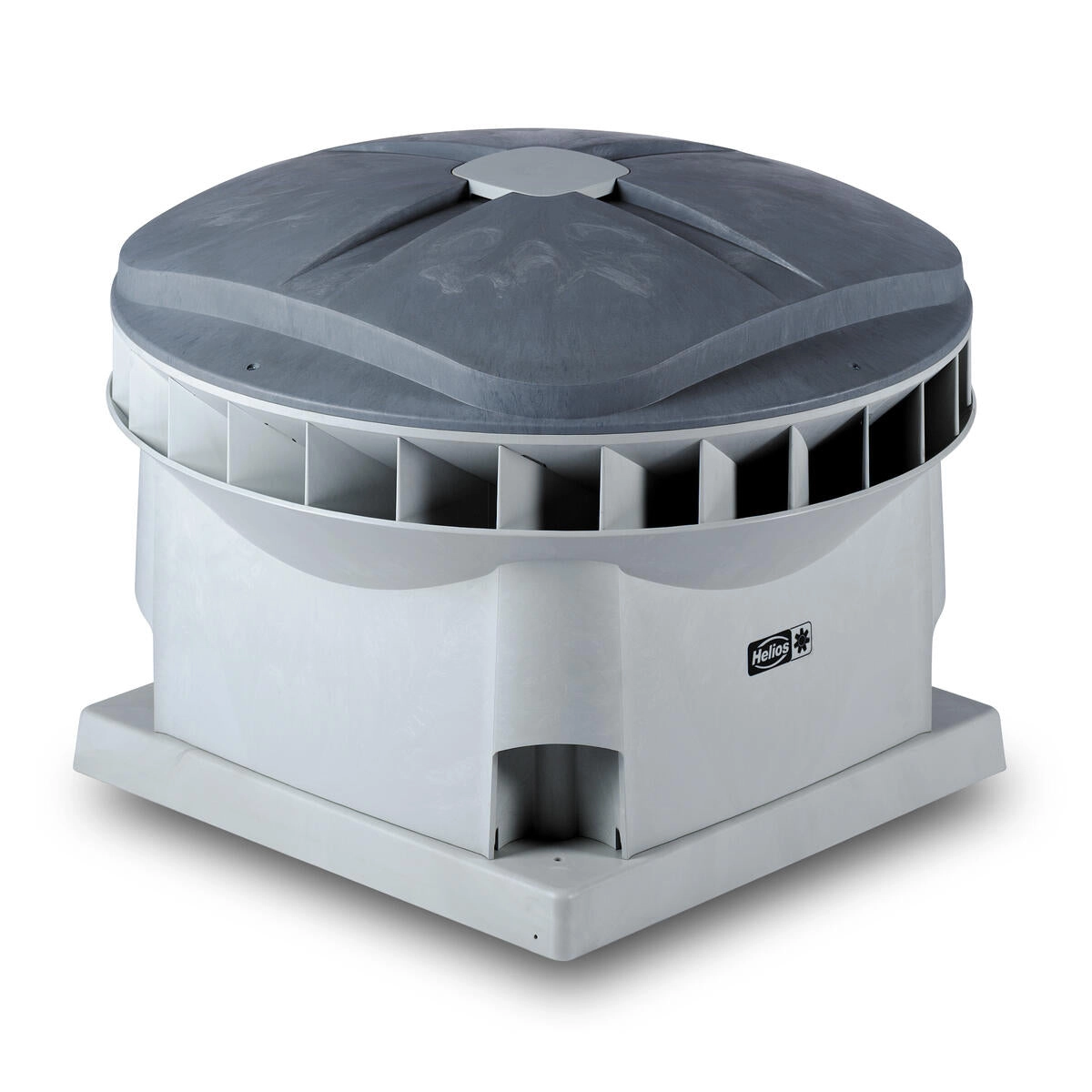

Helios Roof fan DV EC 200 ECO
€1,837.84
Bezahlen Sie sicher und schnell mit:
Roof fan with EC technology.
Aerodynamically designed Housing made of high-quality Polypropylene in grey, diagonal discharging. Operation range of -30 to +60 °C. Integrated Guide vanes for optimal Efficiency. For horizontal Installation.
Diagonal impeller made of aluminium, Motor-impeller unit dynamically made of balanced.
Electronic commutated DC external-rotor motor with Ball bearings for Continuous operation. High Efficiency also at Normal control operation. Maintenance- and radio-interference-free. Stepless Speed control with the Speed- Potentiometer P..10 (Accessories). In Connection with the Universalregelsystem EUR EC (Accessories), can the Fan to Control of Differential pressure, Difference temperature or Air velocity used are.
Dokumente
| Degree of protection: | IP 44 |
|---|---|
| Nominal pipe diameter: | 200 mm |
| Height: | 473 mm |
| Width: | 460 mm |
| Material: | Housing made of Polypropylene; Impeller made of aluminium |
| Airflow rate: | 2090 m³/h |
| Color: | grey |
| Controllability: | Transformer / Electrically |
| Current uncontrolled: | 1.31 A |
| Installation: | Roof |
| Insulation class: | F |
| Other: | EC-Technologie |
| Permissible medium temperature: | 60 °C |
| Rated power: | 0.177 kW |
| Rated speed: | 1800 |
