Maico Small-room fan ECA 100 ipro KH

Version with automatic humidity control:

• Barrier-free product thanks to automatic on/off switching via humidity sensor.
• No switch-on humidity setting required. The fan monitors room humidity.
• Automatically ventilates at level 1 and level 2 depending on room humidity.
• Operation without a switch is possible; optional switching via a separate switch is also possible.
• Start-up delay can be set in steps using easily accessible pushbuttons (only when controlled via switch): 0/50/90/120 sec.
• Overrun time can be set in steps using easily accessible pushbuttons: 8/17/25 min. An overrun time of 0 min can be selected only for control via a separate switch.
• The selected time is shown by LEDs during adjustment.
• Concealed intake with electrically operated internal shutter.
• Not speed controllable.

Operating programs:

• Selectable using a jumper in the unit.
• Comfort program (preset)
  User present: level 1
  Overrun: level 2
• Night program
  User present: level 2
  Overrun: level 1
• Economy program
  User present: level 1
  Overrun: level 1
• Power program
  User present: level 2
  Overrun: level 2

Features:

• Intelligently programmed small-room fan for demanding applications.
• 2 performance levels.
• Concealed intake behind design cover.
• For extract ventilation.
• VDE-GS mark, except: ECA 100 ipro RC/RCH.
• VDE mark: ECA 100 RC/RCH.
• Degree of protection IP X5 for safety in bathrooms.
• Protection class II.
• Suitable for continuous operation.
• Thermal overload protection.
• Colour traffic white, similar to RAL 9016.
• Housing made of impact-resistant plastic.

Motor:

• Energy-saving, robust motor with ball bearings, maintenance-free.
• Suitable for continuous operation.

Installation notes:

• Very easy installation, as the cover can be removed easily using a tool.
• Wall and ceiling installation possible.

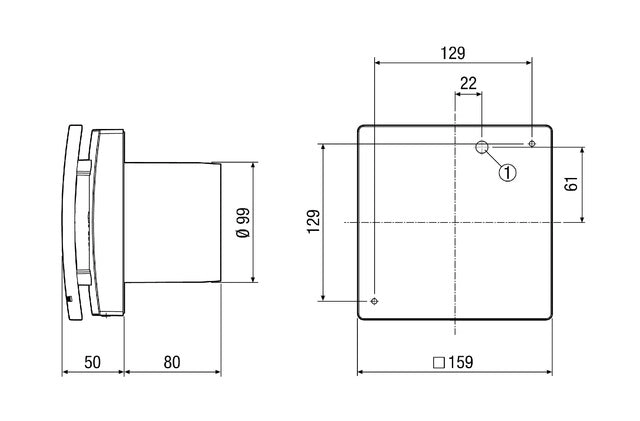

• Compatible with previous ECA DN 100 models, as the mounting holes and flush-mounted cable entry are in the same position.

Electrical connection:

• Flush-mounted electrical connection.

Safety information:

• All ECA 100 ipro units can be used in protection zone 1 in accordance with DIN VDE 0100-701.
• For details, see planning notes.
