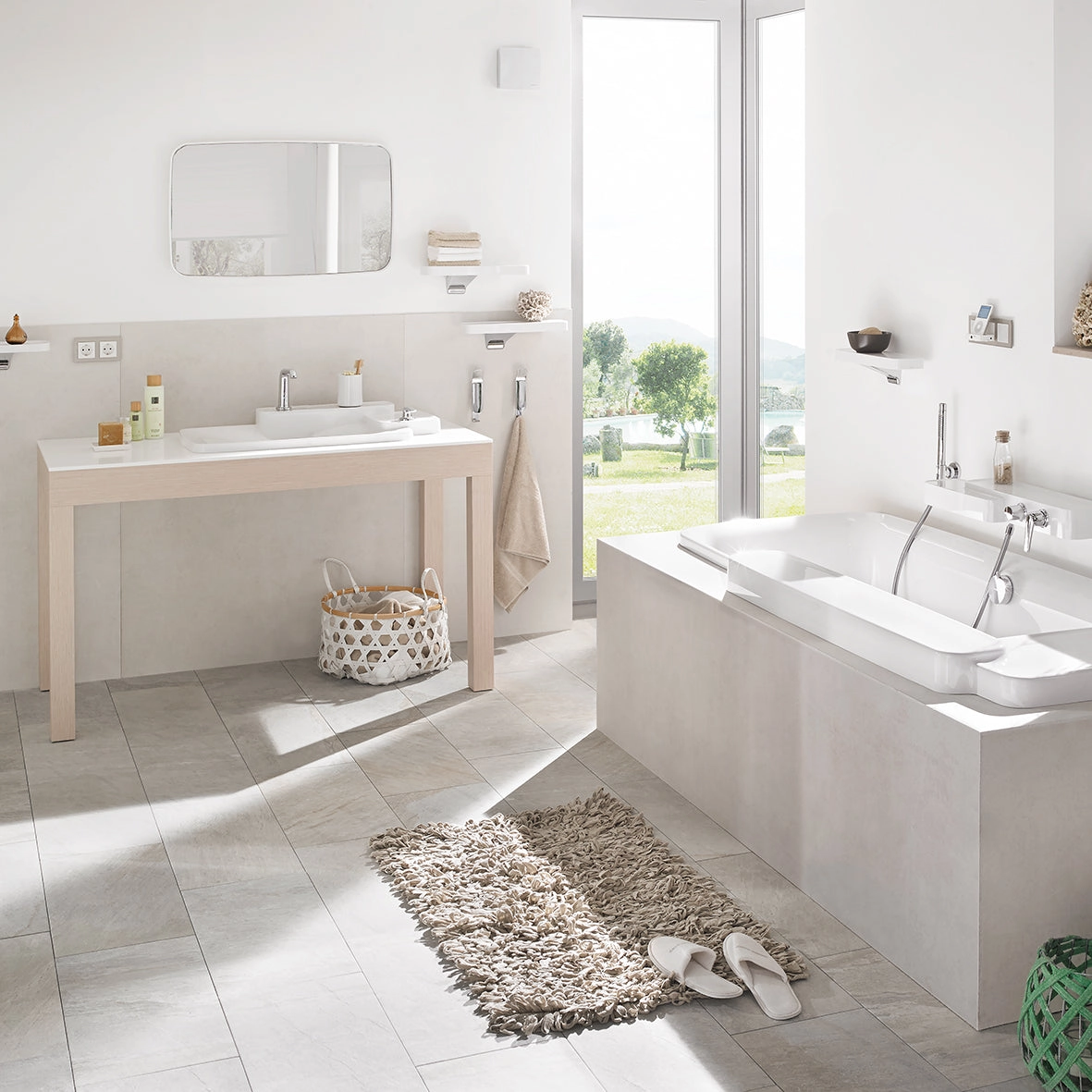

Maico Small-room fan ECA 150 ipro KH

Version with automatically Humidity control:

• Barrier-free Product, because automatically A- / Switch off via Humidity sensor.
• No Setting the Switch-on humidity required. Fan monitored the Room humidity.
• Vented automatically per after Room humidity in Stage 1 and Stage 2.
• Operation without Switch possible, optional additionally via separate Switch switchable.
• Switch-on delay multi-stage via easy accessible Push button adjustable (only at Control via Switch): 0/50/90/120 sek.
• Run-on time multi-stage via easy accessible Push button adjustable: 8/17/25 min.
• Run-on time 0 min only adjustable for Control via separate Switch.
• Set Time is using LED's during the Setting displayed.
• Conceals Intake, with electrically actuated Internal closure.
• Not speed-controllable.

Operating programs:

• Adjustable via Jumper in the Unit.
• Comfort program (before set)
  User present: Stage 1
  Run-on time: Stage 2
• Demand program
  User present: Stage 2
  Run-on time: Stage 1
• Economy program
  User present: Stage 1
  Run-on time: Stage 1
• Power program
  User present: Stage 2
  Run-on time: Stage 2

Features:

• Intelligent programmed Small-room fan for highest Requirements.
• 2 Performance level.
• Conceals Intake through Design cover.
• For the Exhaust ventilation.
• Combined large Air volume with high Pressure rating.
• With VDE-GS Mark.
• Degree of protection IP X5 for Safety in the Bathroom.
• Protection class II.
• Thermal Overload protection.
• For Continuous operation suitable.
• Colour traffic white similar RAL 9016.
• Housing made of impact-resistant Plastic.

Motor:

• Energy-saving, robust Motor with Ball bearings maintenance-free.
• For Continuous operation suitable.

Installation instructions:

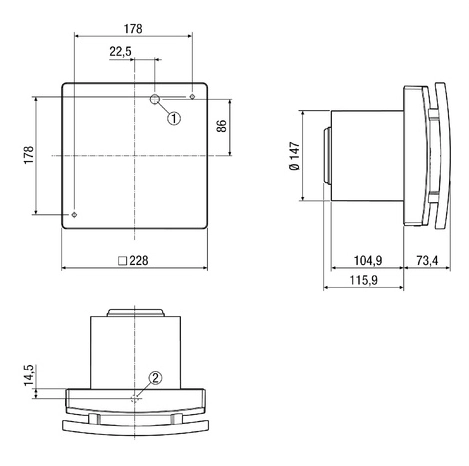

• Compatible to ECA Predecessor models DN 150, because Mounting holes and
• Cable entry Flush-mounted at the same Position.
• Wall- and Ceiling mounting possible.

Electrical Connection:

• Electrical Connection optionally On- or Flush-mounted.

Safety instructions:

• All ECA 150 ipro Units in the Protection range 1 according to DIN VDE 0100-701 usable.
• Details see Planning instructions.

Dokumente

• mcdb00840095
