Maico Small-room fan ECA 150 ipro KRCH

Version with Radio receiver and Humidity control:

• With integrated Radio receiver 868 MHz and Humidity control.
• Barrier-free Product, because automatically A- / Switch off via Humidity sensor.
• No Setting the Switch-on humidity required. Fan monitored the Humidity profile. Vented automatically per after Room humidity in Stage 1 or Stage 2.
• With separate Wireless switch DS RC or separate Control RLS RC switchable.

• The two Speed can either at the Wireless switch or at the Control selected are.

• Conceals Intake, with electrically actuated Internal closure.
  Not speed-controllable.

Features:

• Radio-controlled Fan for the Extract air system MAICOsmart, with installed Radio receiver 868 MHz, on EnOcean Technology based.

• The Fan can with a Double rocker switch (DS RC) operated are (no Cable installation between Switch and Fan required).

• The Fan can in a Master – Slave Assembly with other ECA 150 ipro RC/RCH/KRC/KRCH installed are (RLS RC required). A Combination of ECA 150 ipro RC/RCH/KRC/ KRCH with ECA 100 ipro RC/RCH or ER 100 RC is not possible.

• Two Performance level.

• Conceals Intake through Design cover.

• For the Exhaust ventilation.

• With VDE GS Mark.

• Degree of protection IP X5 for Safety in the Bathroom.

• Protection class II.

• Colour traffic white similar RAL 9016.

• Housing made of impact-resistant Plastic.

Motor:

• Energy-saving, robust Motor with Ball bearings, maintenance-free.

• For Continuous operation suitable.

Installation instructions:

• Easy Installation, because Cover easy with Tool removable.

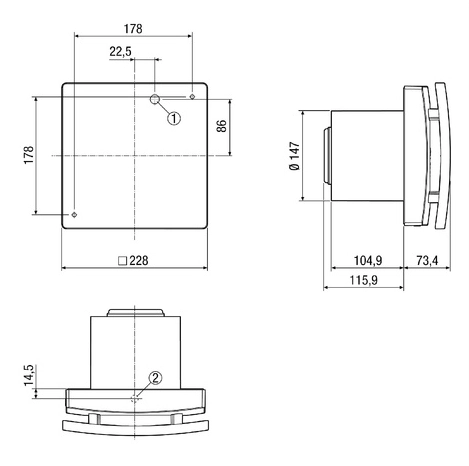

• Compatible to ECA Predecessor models DN 150, because Mounting holes and Cable entry Flush-mounted at the same Position.

Electrical Connection:

• Electrical Connection Flush-mounted.

Safety notice:

• The Fans comply the Degree of protection IP X5 and can thus in the Protection range 1 according to DIN VDE 0100-701 installed are.

• Details see Planning instructions Chapter Small-room fan.
