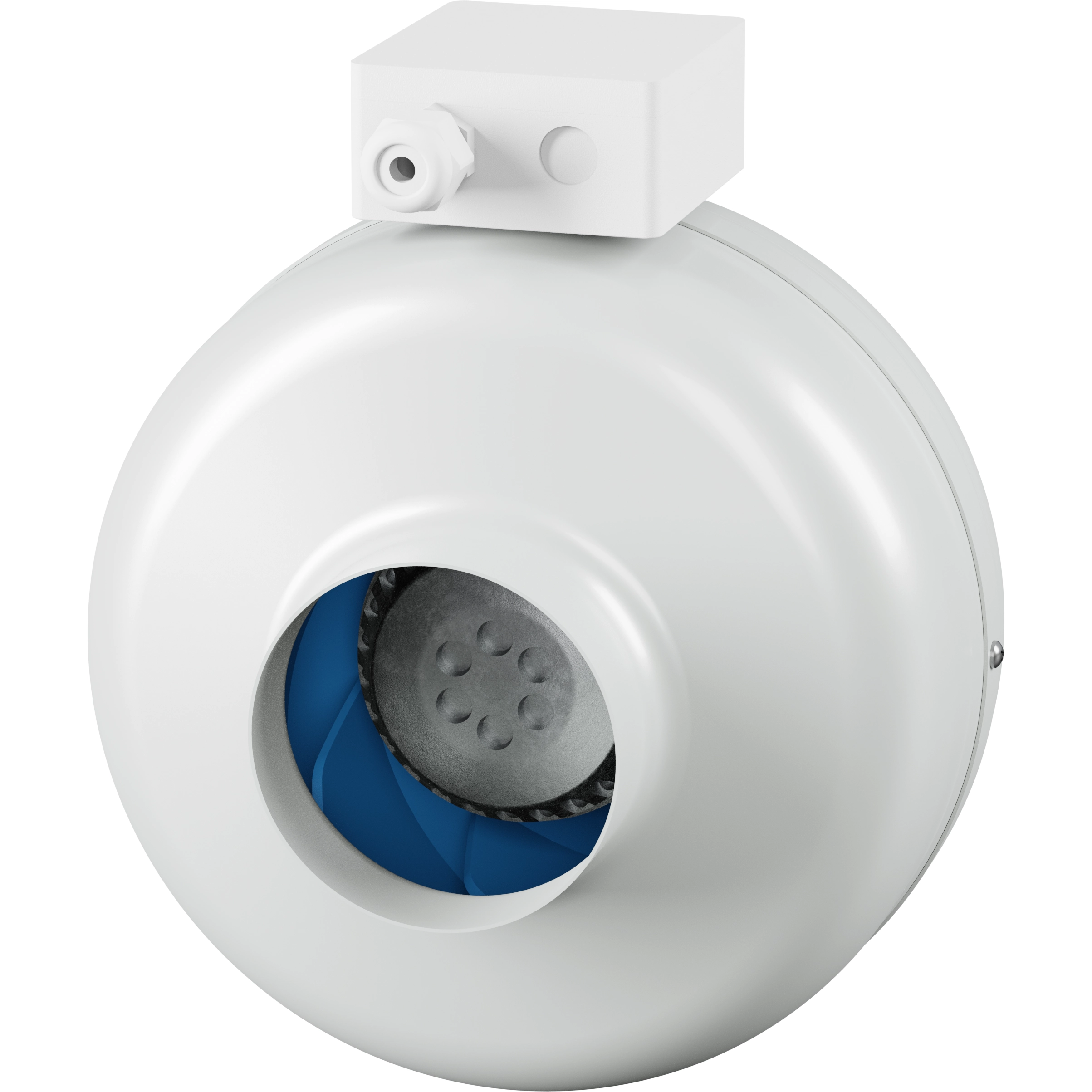

Ruck Centrifugal fan RS 150 EC K 01
€255.26
Bezahlen Sie sicher und schnell mit:
Powerful, direct-drive centrifugal fan with backward-curved impeller for installation in the duct system. The fan can be installed in any orientation, horizontally or vertically.
The inline fan consists of a metal housing with a powder coating in light grey (RAL7035). The enclosed external-rotor motor is protected against overheating by integrated thermal switches. The impeller and motor are balanced in two planes to quality grade G 6.3 in accordance with DIN/ISO 1940. Maintenance-free, permanently lubricated ball bearings, sealed on both sides. The electrical terminal box is mounted on the outside of the housing. Control: transformer-based and electronic.
CE marking in accordance with the EC Declaration of Conformity for Electromagnetic Compatibility (EMC) – Directive 2004/108/EC. EC Declaration of Incorporation in accordance with Machinery Directive 2006/42/EC – Directive 2009/125/EC (Regulation 1253/2014/EU).
| Degree of protection: | IP protection classification (boîtier): IP4 IP protection classification (complet unité): IPX4 IP protection classification (boîte à bornes): I44 |
|---|---|
| Nominal pipe diameter: | 150 mm |
| Height: | 270 mm |
| Width: | 270 mm |
| Material: | Housing material: Sheet steel impeller material: Plastic |
| Airflow rate: | 440 m³/h |
| Controllability: | stepless |
| Depth: | 191 mm |
| Insulation class: | F |
| Rated frequency: | 50 Hz |
| Rated power: | 0.05 kW |
| Rated speed: | 2760 1/min |
| Sound pressure level: | 51 dB(A) |
