Ruck Compact ventilation unit with WRG ETA K 700 V EOJL
Proven Ruck Quality for durable Installation
Regular price:
€7,509.14
Product number:
14003622
Stock:
0
Manufacturer:
Ruck
Manufacturer number:
165360
Kostenloser Versand für dieses Produkt
Sicher kaufen mit Trusted Shops
Immer 100 Tage Widerrufsrecht
Bezahlen Sie sicher und schnell mit:
Sofort
VISA
PayPal
RIVERTY
Description

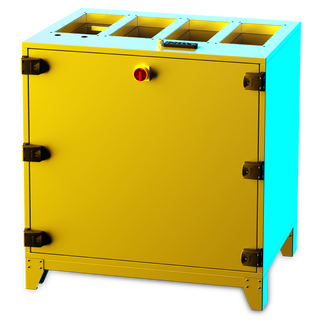

Compact ventilation unit with counterflow heat exchanger
Vertical connections, right-hand version
Frameless, double-walled housing made of galvanised sheet steel, insulated
Constant-airflow EC fans, integrated control
Electrical plug connections, pre-wired, pre-configured and factory-tested
Hot-water heating, without cooling, F7/M5 panel filter
Designed on the basis of VDI 6022
Properties
| Degree of protection: | IP protection classification (boîtier): IPX4 IP protection classification (complet unité): IPX4 IP protection classification (boîte à bornes): IP44 |
|---|---|
| Height: | 1150 mm |
| Width: | 1100 mm |
| Material: | Housing material: Sheet steel impeller material: Plastic |
| Duct dimension: | 400/200 mm |
| Airflow rate: | 470 m³/h |
| Controllability: | stepless |
| Depth: | 708 mm |
| Insulation class: | F |
| Rated frequency: | 50 Hz |
| Rated power: | 0.05 kW |
| Rated speed: | 4000 1/min |
