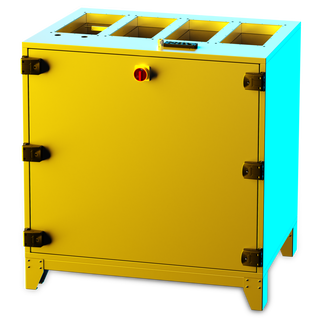

Ruck Compact ventilation unit with WRG ETA K 700 V WOJL
Ruck Technology – strong, safe, durable
Regular price:
€7,458.86
Product number:
14003623
Stock:
0
Manufacturer:
Ruck
Manufacturer number:
165359
Kostenloser Versand für dieses Produkt
Sicher kaufen mit Trusted Shops
Immer 100 Tage Widerrufsrecht
Bezahlen Sie sicher und schnell mit:
Sofort
VISA
PayPal
RIVERTY
Description
Compact ventilation unit with counterflow heat exchanger
Vertical connections, right-hand version
Frameless, double-walled housing made of galvanised sheet steel, insulated
Constant-airflow EC fans, integrated control
Electrical plug connections, pre-wired, pre-configured and factory-tested
Hot-water heating, without cooling, F7/M5 panel filter
Designed on the basis of VDI 6026
Properties
| Degree of protection: | IP protection classification (boîtier): IPX4 IP protection classification (complet unité): IPX4 IP protection classification (boîte à bornes): IP44 |
|---|---|
| Height: | 1150 mm |
| Width: | 1100 mm |
| Material: | Housing material: Sheet steel impeller material: Plastic |
| Duct dimension: | 400/200 mm |
| Airflow rate: | 640 m³/h |
| Controllability: | stepless |
| Depth: | 708 mm |
| Installation: | ALM (Outside) |
| Insulation class: | F |
| Other: | Hocheffizienter EC-Motor, stufenlos regelbar |
| Rated power: | 0.11 kW |
| Rated speed: | 3960 |
| Sound pressure level: | 64 dB(A) |
