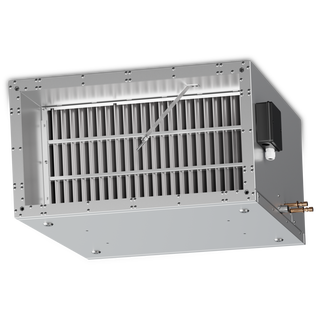

Ruck Direct evaporator DVRI 12040 L
Reliable Ruck Component for Ventilation systems
Regular price:
€2,704.16
Product number:
15001437
Stock:
0
Manufacturer:
Ruck
Manufacturer number:
173424
Kostenloser Versand für dieses Produkt
Sicher kaufen mit Trusted Shops
Immer 100 Tage Widerrufsrecht
Bezahlen Sie sicher und schnell mit:
Sofort
VISA
PayPal
RIVERTY
Description
Direct-expansion coil
Galvanised sheet steel, insulated
Integrated condensate tray, droplet separator
With NTC temperature sensor
Airflow direction and connection side interchangeable (see data sheet)
Changing from counterflow to parallel-flow operation may result in up to 20% loss of capacity
Ceiling and floor installation
Properties
| Degree of protection: | IP protection classification (complet unité): IPX4 IP protection classification (boîte à bornes): IP44 |
|---|---|
| Height: | 467 mm |
| Width: | 1267 mm |
| Material: | Housing material: Sheet steel galvanized impeller material: Plastic |
| Duct dimension: | 1200/400 mm |
| Airflow rate: | 842.4 m³/h |
| Controllability: | stepless |
| Depth: | 510 mm |
| Installation: | ALM (Outside) |
| Other: | Rückwärtsgekrümmtes Radiallaufrad Ventilatoreinheit ausbaubar Hocheffizienter EC-Motor, stufenlos regelbar, Außenläufer Interne elektronische Temperaturüberwachung |
| Permissible medium temperature: | 50 °C |
| Rated frequency: | 50 Hz |
| Rated power: | 0.1 kw |
| Rated speed: | 2930 |
| Sound pressure level: | 62 dB(A) |
