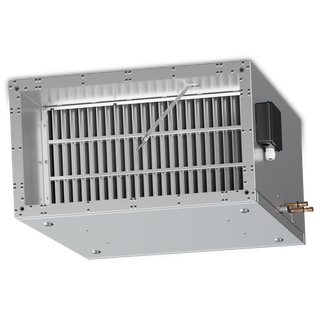

Ruck Direct evaporator DVRI 9040 L
Ruck Technology – strong, safe, durable
Regular price:
€2,356.08
Product number:
15001435
Stock:
0
Manufacturer:
Ruck
Manufacturer number:
173396
Kostenloser Versand für dieses Produkt
Sicher kaufen mit Trusted Shops
Immer 100 Tage Widerrufsrecht
Bezahlen Sie sicher und schnell mit:
Sofort
VISA
PayPal
RIVERTY
Description
Direct-expansion coil
Galvanised sheet steel, insulated
Integrated condensate tray, droplet separator
With NTC temperature sensor
Airflow direction and connection side interchangeable (see data sheet)
Changing from counterflow to parallel-flow operation may result in up to 20% loss of capacity
Ceiling and floor installation
Properties
| Height: | 467 mm |
|---|---|
| Width: | 967 mm |
| Material: | Housing material: Sheet steel galvanized impeller material: Plastic |
| Duct dimension: | 900/400 mm |
| Airflow rate: | 2930 m³/h |
| Controllability: | stepless |
| Depth: | 510 mm |
| Insulation class: | B |
| Rated frequency: | 50 Hz |
| Rated power: | 0.17 kW |
| Rated speed: | 1550 |
| Sound pressure level: | 67 dB(A) |
