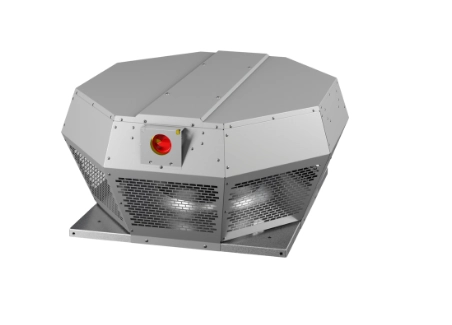

Ruck Roof-mounted centrifugal fan DHA 190 EC O R 01
€418.46
Bezahlen Sie sicher und schnell mit:
Roof-mounted centrifugal fan with backward-curved impeller and horizontal discharge. Housing made of weather-resistant AlMg3 aluminium with a very low overall height and hinged fan unit. The discharge side is protected against contact, contamination and other foreign objects by a bird and contact-protection grille. Base plate made of galvanised sheet steel with deep-drawn inlet cone and pre-installed threaded studs for connecting duct flanges and accessories in accordance with DIN 24154 / EN 12 220. The fan is designed for easy installation on the roof base (available as an optional accessory) without having to remove the housing.
The efficiency-optimised impeller with backward-curved blades is mounted on the rotor of a voltage-controllable external-rotor motor. The impeller and motor are balanced in two planes to quality grade G 6.3 in accordance with DIN/ISO 1940. The drive motor is fitted with maintenance-free, sealed ball bearings with lifetime lubrication. Motor protection is provided by thermal contacts integrated into the winding, which must be connected externally in series. Electrical connection is via the cable routed out through the base of the housing.
CE marking in accordance with the EC Declaration of Conformity for electromagnetic compatibility (EMC), Directive
2004/108/EC. EC Declaration of Incorporation in accordance with Machinery Directive 2006/42/EC and Directive 2009/125/EC (Regulation 1253/2014/EU).
| Degree of protection: | IP protection classification (boîtier): IP44 IP protection classification (complet unité): IPX4 IP protection classification (boîte à bornes): I44 |
|---|---|
| Nominal pipe diameter: | 180 mm |
| Height: | 190 mm |
| Width: | 388 mm |
| Material: | Housing material: Aluminium impeller material: Plastic |
| Airflow rate: | 1213.2 m³/h |
| Controllability: | stepless |
| Depth: | 388 mm |
| Insulation class: | F |
| Rated frequency: | 50 Hz |
| Rated power: | 0.16 kW |
| Rated speed: | 2795 1/min |
| Sound pressure level: | 79 dB(A) |
