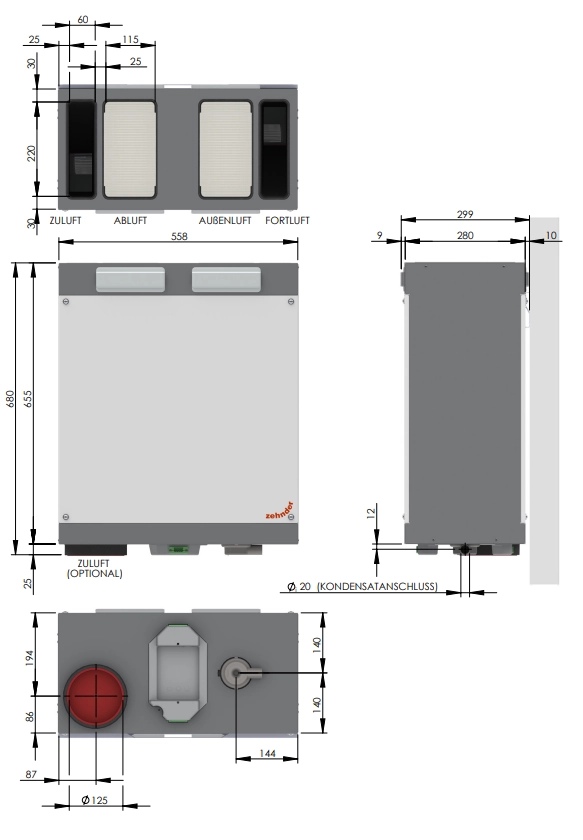

Zehnder Comfort ventilation unit ComfoAir 180 V without Control unit

The Zehnder ComfoAir 180 is a central, compact Ventilation unit with heat recovery and integrated summer bypass as well as a integrated electrically Preheating coil. This Ventilation unit is suitable itself excellent for New buildings as well as for renovation measures in Apartments. The made of galvanized as well as painted Sheet steel consisting Housing is sound as well as thermally insulated. DC fans provide the energy-efficient Operation safe and enable therefore a high electrical efficiency. To and Extract air fan are separate from each other controllable and allow itself accurate to the percent on the balanced airflow adjust. Core piece of the Zehnder ComfoAir 180 is the Cross-counterflow heat exchanger made of plastic with a heat recovery efficiency of to to 95%. The Operation takes place via a wired Control unit (ComfoControl Ease not in Scope of delivery), the with a on-site cable (YSTY 2x2x0,6) at the ventilation unit connected is. All Operating states as well as error messages are on the Display the control unit visible. Through the integrated electrical Preheating coil is the Operation safety also at outside air temperature under the freezing point ensured. The Zehnder ComfoAir 180 is ready to plug in supplied. The Filter are front-side, without the unit to open from the User easy to replace. The Zehnder ComfoAir 180 is wall-mounted installed. The Connection takes place typically at the Zehnder ComfoPipe Plus Dual-duct system which also Adapter on DN 125 contains. Automatic Frost protection control time controlled Filter replacement indicator G4 Units filter (optional filter class F7 available) Automatically and temperature-controlled Summer Bypass error history the last three error messages. To and Extract air fan are individually switchable. Connection options for external boost ventilation button with adjustable A and switch-off delay. Comfort temperature control chimney-sweep control heat exchanger: Plastic fans: EC DC fans filter: Extract air: G4 Outside air: G4(optional F7 Pollen filter) Condensate connection: DN 20 Air duct connection: 4 x rectangular, for ComfoPipe Plus Double duct, optional supply air DN 125, bottom mains connection: 230V, 50 Hz Operating limits: 7C to 40C in Installation room sound power (min/max): Extract air: 38 dB(A) / 53 dB(A) Supply air: 39 dB(A) / 63 dB(A) Airflow rate: maximum 180 m3/h at 170 Pa external minimum 28 m3/h at 3 Pa external power consumption: maximum 1250 Watt, minimum 7 Watt Dimensions: Height: 680 mm (with Spigot: 864 mm) Width: 560 mm, Depth: 280 mm Weight: 22 kg Options: Enthalpy heat exchanger retrofittable type: ZE Ventilation unit ComfoAir 180V without Control unit make: Zehnder Comfosystems Item number: 471212215

Dokumente

• Zehnder_CSY_ComfoAir_180_TES_DE-de
