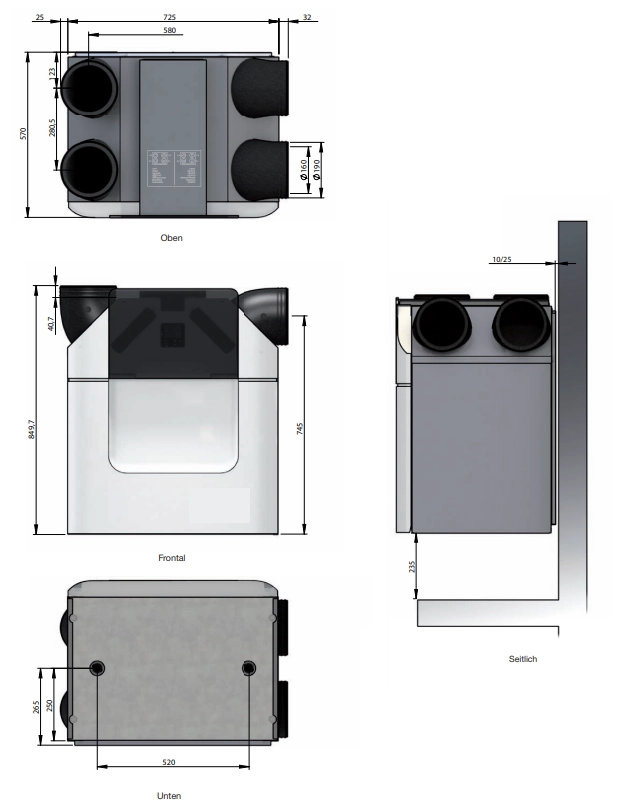

Zehnder Comfort ventilation unit ComfoAir Q350 TR with integrated Display

The Zehnder ComfoAir Q350 TR is a central, compact ventilation unit with heat recovery and integrated summer bypass. This ventilation unit is ideal for new builds as well as refurbishment projects. The housing, made of galvanised and painted sheet steel, is acoustically and thermally insulated. Energy-efficient DC fans ensure economical operation and therefore high electrical efficiency. The supply-air and extract-air fans can be controlled separately and can be set with percentage accuracy by entering the balanced airflow rate. At the heart of the ComfoAir Q350 TR is a plastic counterflow heat exchanger with a heat recovery efficiency of more than 90%. The unit is operated via the integrated control panel. Alternatively, operation can be via a wired control unit (ComfoSense C or ComfoSwitch C), connected to the ventilation unit with an on-site cable (JYSTY 2x2x0.6). The unit can also optionally be operated via the ComfoConnect LAN C or ComfoConnect KNX C interfaces. All operating states and fault messages are visible on the display. The ComfoAir Q350 TR is supplied ready to plug in. The filters are located at the front and can easily be replaced by the user without opening the unit. The ComfoAir Q350 TR can be installed either wall-mounted or floor-standing using an optionally available base. Connection is via 4 rotatable DN 160 connection spigots facing upwards or sideways. Automatic frost-protection control Filter replacement indicator G4 unit filters (optional filter class F7 available) Automatic, temperature-controlled summer bypass Fault history for the last three fault messages Supply-air and extract-air fans can be switched on individually Comfort temperature control Chimney-sweep mode Heat exchanger: plastic Fans: EC DC centrifugal fans, inlet side Filters: extract air: G4, outdoor air: G4 Condensate connection: DN 32 Air duct connections: 4x DN160, freely rotatable upwards or sideways Mains connection: 230V, 50 Hz Operating limits: 7C to 40C in the installation room Sound power (min/max): Extract air: 35.0 dB(A) / 51 dB(A) Supply air: 46.0 dB(A) / 66 dB(A) Heat recovery efficiency: up to 92% Airflow rate: maximum 350 m3/h at 200 Pa external minimum 40 m3/h at 10 Pa external Power consumption: maximum 175 watts Electrical efficiency: 0.2 Wh/m3 at 245 m3/h Dimensions: Height: with spigots: 850 mm Width: with spigots 757 mm Depth: 570 mm Type: ZE ComfoAir Q350 TR ventilation unit with integrated display Manufacturer: Zehnder Comfosystems Item number: 471502009

Dokumente

• Zehnder_CSY_ComfoAir_Q350_TES_DE-de_1
