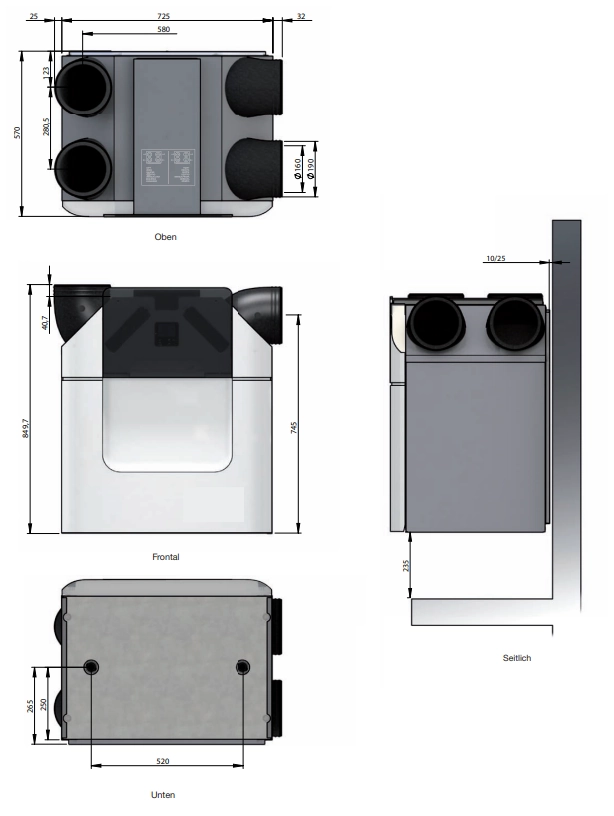

Zehnder Comfort ventilation unit ComfoAir Q450 TR Enthalpy with integrated Display

The Zehnder ComfoAir Q450 TR Enthalpy is a central, compact ventilation unit with heat recoveryund integrated Summer bypass. This ventilation unit is suitable itself excellent for New buildings as well as for renovation measures. The made of galvanized as well as painted sheet steel consisting Housing is sound as well as thermally insulated. Economical DC fans provide the energy-efficient Operation safe and enable therefore a high electrical efficiency. To and extract air fan are separate from each other controllable and allow itself through Input the Balanced airflow accurate to the percent adjust. Core piece of the ComfoAir Q450 TR Enthalpy is the Cross-counterflow Heat exchanger made of Plastic with a heat recovery efficiency of more as 90%. The Operation takes place via the integrated Control unit. Optional can the Operation via a wired Control unit take place (ComfoSense C or ComfoSwitch C), the with a on-site Cable (JYSTY 2x2x0,6) at the Ventilation unit connected are. Optionally can the operation also via the Interface ComfoConnect LAN C or Comfoconnect KNX C take place. All Operating states as well as error messages are on the Display visible. The ComfoAir Q450 TR is ready to plug in supplied. The Filter are front-side, without the Unit to open from the User easy to replace. The ComfoAir Q450 TR Enthalpy can both wall-mounted as also floor upright with a optional available Base installed are. The Connection takes place via 4 rotatable connection spigot DN 160 after top or lateral. Automatic Frost protection control filter replacement indicator G4 Units filter (optional filter class F7 available) Automatically and temperature-controlled Summer Bypass error history the last three error messages To and Extract air fan are individually switchable comfort temperature control chimney-sweep control heat exchanger: Plastic fans: EC DC fans radial on the intake side Filter: Extract air: G4, Outside air: G4 Condensate connection: DN 32 Air duct connections: 4x DN160 after top or lateral free rotatable mains connection: 230V, 50 Hz Operating limits: 7C to 40C in Installation room sound power (min/max): Extract air: 42,0 dB(A) / 53 dB(A) Supply air: 53,0 dB(A) / 69 dB(A) Heat recovery efficiency: to to 92% Airflow rate: maximum 450 m3/h at 200 Pa external minimum 50 m3/h at 15 Pa external power consumption: maximum 245 Watt Electrical efficiency: 0,2 Wh/m3 at 315 m3/h Dimensions: Height: with Spigot: 850 mm Width: with Spigot 757 mm Depth: 570 mm Type: ZE Ventilation unit ComfoAir Q450 TR Enthalpy with integrated Display Make: Zehnder Comfosystems Item number: 471502012

Dokumente

• Zehnder_CSY_ComfoAir_Q450_TES_DE-de
