Zehnder Distribution box CW-D 420 including Terminal strips and Mounting material
Compact Distribution box for via itself Air distribution
Regular price:
€171.80
Product number:
11757070
Stock:
0
Manufacturer:
Zehnder
Manufacturer number:
990323620
Kostenloser Versand für dieses Produkt
Sicher kaufen mit Trusted Shops
Immer 100 Tage Widerrufsrecht
Bezahlen Sie sicher und schnell mit:
Sofort
VISA
PayPal
RIVERTY
Description
Sound-insulating Deflection- and distribution box CW-D 420 in
Compact design with closed-cell cross-talk attenuating internal lining, suitable to
Mounting plate for Ventilation pipes
ComfoTube 4 x 75 or 4 x 90.
The Connection Mounting plate is replaceable of at the end on lateral.
The Distribution box can individually or in
Combination with all Attachments used are. The airtight connection with all Attachments takes place via a Folded joint with terminal strip.
The Distribution box features via a inspection opening, the a easy cleaning and Balancing the ventilation pipes ComfoTube enables.
The Installation at Wall or Ceiling takes place via height-adjustable Installation bracket.
Installation accessories is included in the scope of deliveryenthalten.

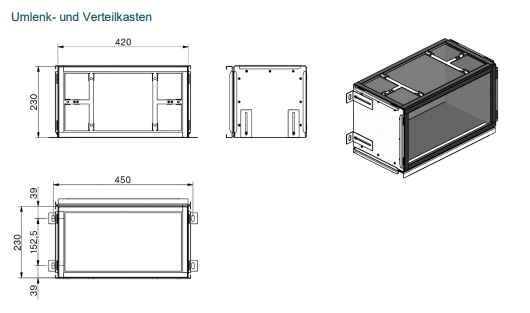

Material: Sheet steel, galvanized dimensions:
Length: 230 mm
Width: 420 mm
Height: 230 mm
Accessories:
Silencer CW-S 420
(990323504)
End plate CW-P 420 DN 160
(990323627)
End plate CW-P 420 DN 200
(990323629)
Installation set CW-K 420 ComfoAir
Q350/450 TR (990323640)
Installation set CWK 420 ComfoAir
Q600 ST (990323641)
Mounting plate CW-M 420 8x75/P
(990323621)
Mounting plate CW-M 420 8x90/P
(990323622)
Filter housing CW-F 420
(990323554)
Type: ZE Deflection- and Distribution box
ComfoWell CW420, 420mm x 230mm x 230mm
Item number: 990 323 620
Dokumente
Properties
| Height: | 250 mm |
|---|---|
| Width: | 270 mm |
| Material: | Sheet steel, galvanized |
| Length: | 540 mm |
