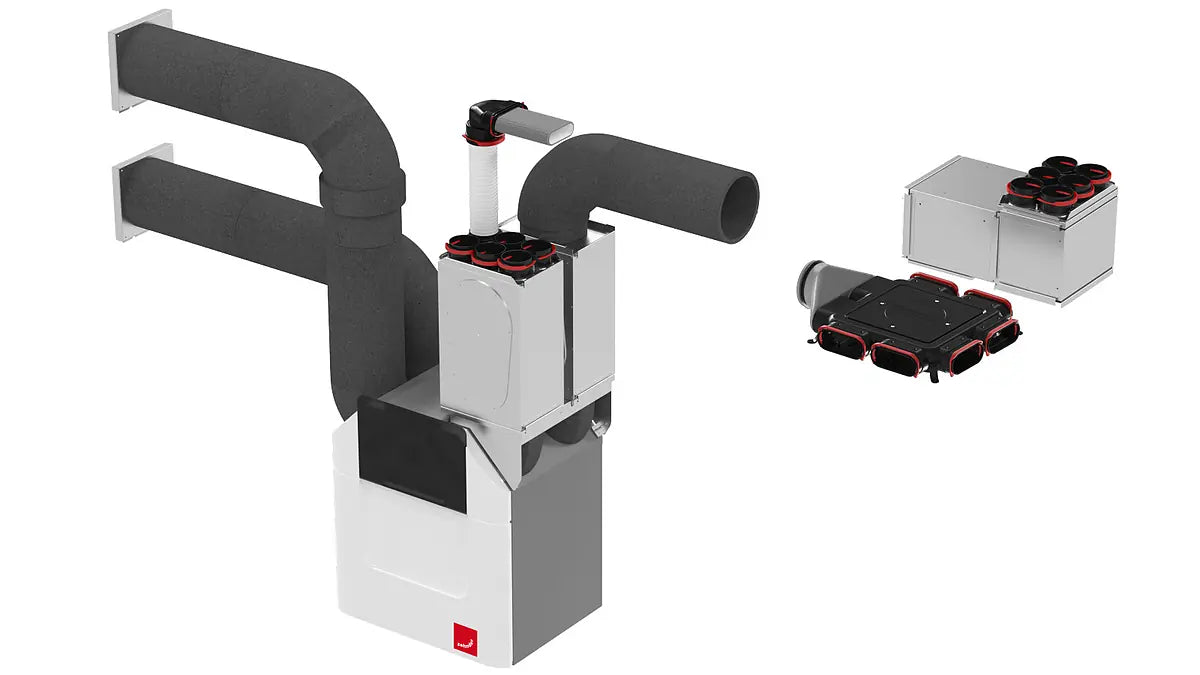

Zehnder Distribution box CW-D 520 including Terminal strips and Mounting material
Zehnder air distributor for structured airflow routing
Regular price:
€191.81
Product number:
11757071
Stock:
0
Manufacturer:
Zehnder
Manufacturer number:
990323532
Kostenloser Versand für dieses Produkt
Sicher kaufen mit Trusted Shops
Immer 100 Tage Widerrufsrecht
Bezahlen Sie sicher und schnell mit:
Sofort
VISA
PayPal
RIVERTY
Description
Sound-insulating Deflection- and distribution box CW-D 520 in
Compact design with closed-cell cross-talk attenuating internal lining, suitable to
Mounting plate for Ventilation pipes
ComfoTube 4 x 75 or 4 x 90.
The Connection Mounting plate is replaceable of at the end on lateral.
The Distribution box can individually or in
Combination with all Attachments used are. The airtight connection with all Attachments takes place via a Folded joint with terminal strip.
The Distribution box features via a inspection opening, the a easy cleaning and Balancing the ventilation pipes ComfoTube enables.
The Installation at Wall or Ceiling takes place via height-adjustable Installation bracket.
Installation accessories is included in the scope of deliveryenthalten.

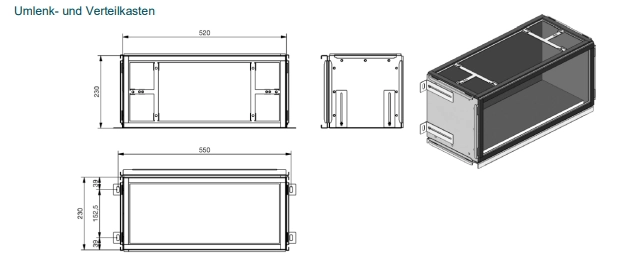

Material: Sheet steel, galvanized dimensions:
Length: 230 mm
Width: 520 mm
Height: 230 mm
Accessories:
End plate CW-P 520 DN 160
(990323564)
End plate CW-P 520 DN 200
(990323514)
Mounting plate CW-M 520 10x75/P
(990323614)
Mounting plate CW-M 520 10x90/P
(990323615)
Silencer CW-S 520
(990323502)
Filter housing CW-F 520
(990323552)
Type: ZE Deflection- and Distribution box
ComfoWell CW520, 520mm x 230mm x 230mm
Item number: 990 323 532
Dokumente
Properties
| Height: | 250 mm |
|---|---|
| Width: | 350 mm |
| Material: | Sheet steel, galvanized |
| Length: | 550 mm |
