Zehnder Installation set CW-K-320 - CA Q350 / 450 TR
Compact Zehnder Installation set – all in a
Regular price:
€157.68
Product number:
11757112
Stock:
0
Manufacturer:
Zehnder
Manufacturer number:
990323644
Kostenloser Versand für dieses Produkt
Sicher kaufen mit Trusted Shops
Immer 100 Tage Widerrufsrecht
Bezahlen Sie sicher und schnell mit:
Sofort
VISA
PayPal
RIVERTY
Description

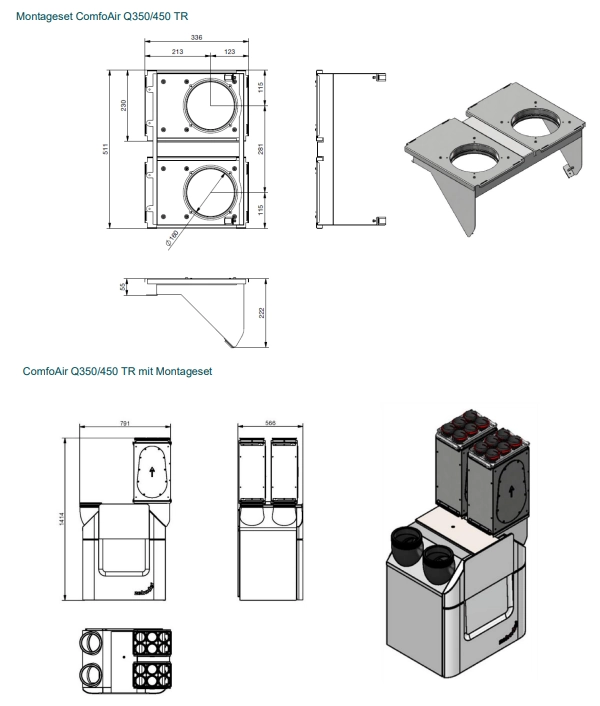

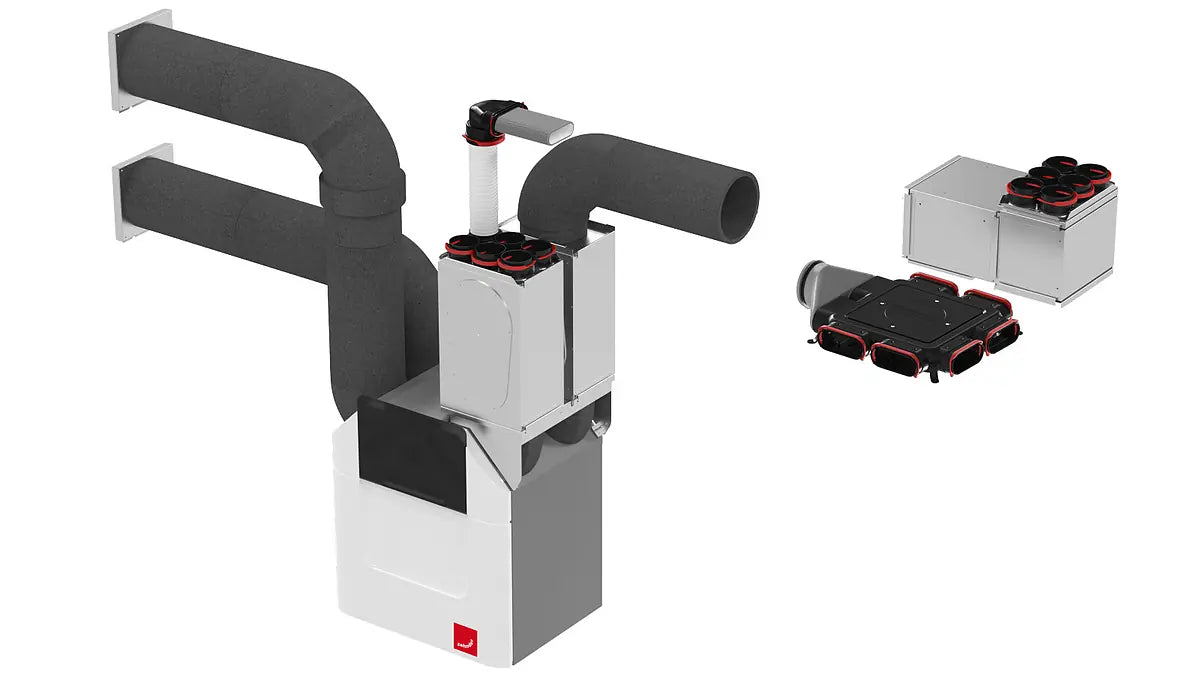

Zehnder ComfoWell Montagesetfor installation of two ComfoWell
Silencer elements and or filter housing in Connection with the ventilation unit ComfoAir Q350/450 TR.
The compact Arrangement the Elements enables a very space-saving and quick Installation.
The airtight Connection with all attachments takes place via a folded joint with Terminal strip.
The Installation takes place via adjustable installation bracket. The Installation accessories is located at.
The Set contains the Installation set,
End plate as well as the required mounting material.
Material: Sheet steel, galvanized combinable with:
Silencer CWS 320
(990323501)
Filter housing CWF 320
(990323551)
Type: ZE Installation set ComfoWell CW320
for ComfoAir Q350/450 TR
Make: Zehnder Comfosystems
Item number: 990 323 644
Dokumente
Properties
| Height: | 250 mm |
|---|---|
| Width: | 350 mm |
| Length: | 650 mm |
