Zehnder Ventilation pipe ComfoTube Flow 75, 50 m Roll
Comfort ventilation of Zehnder – healthy and economical
Regular price:
€242.40
Product number:
15000475
Stock:
0
Manufacturer:
Zehnder
Manufacturer number:
990328100
Kostenloser Versand für dieses Produkt
Sicher kaufen mit Trusted Shops
Immer 100 Tage Widerrufsrecht
Bezahlen Sie sicher und schnell mit:
Sofort
VISA
PayPal
RIVERTY
Description

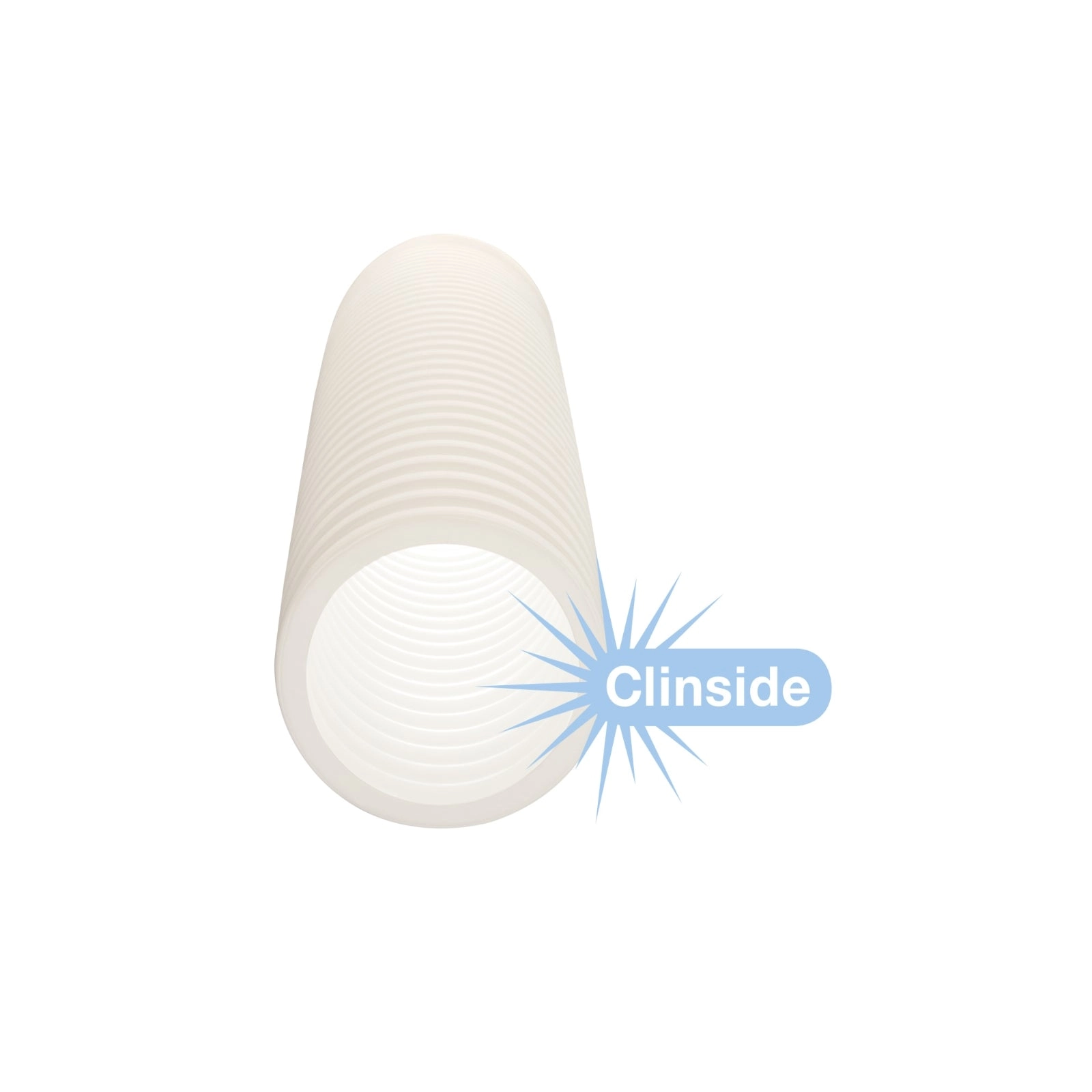

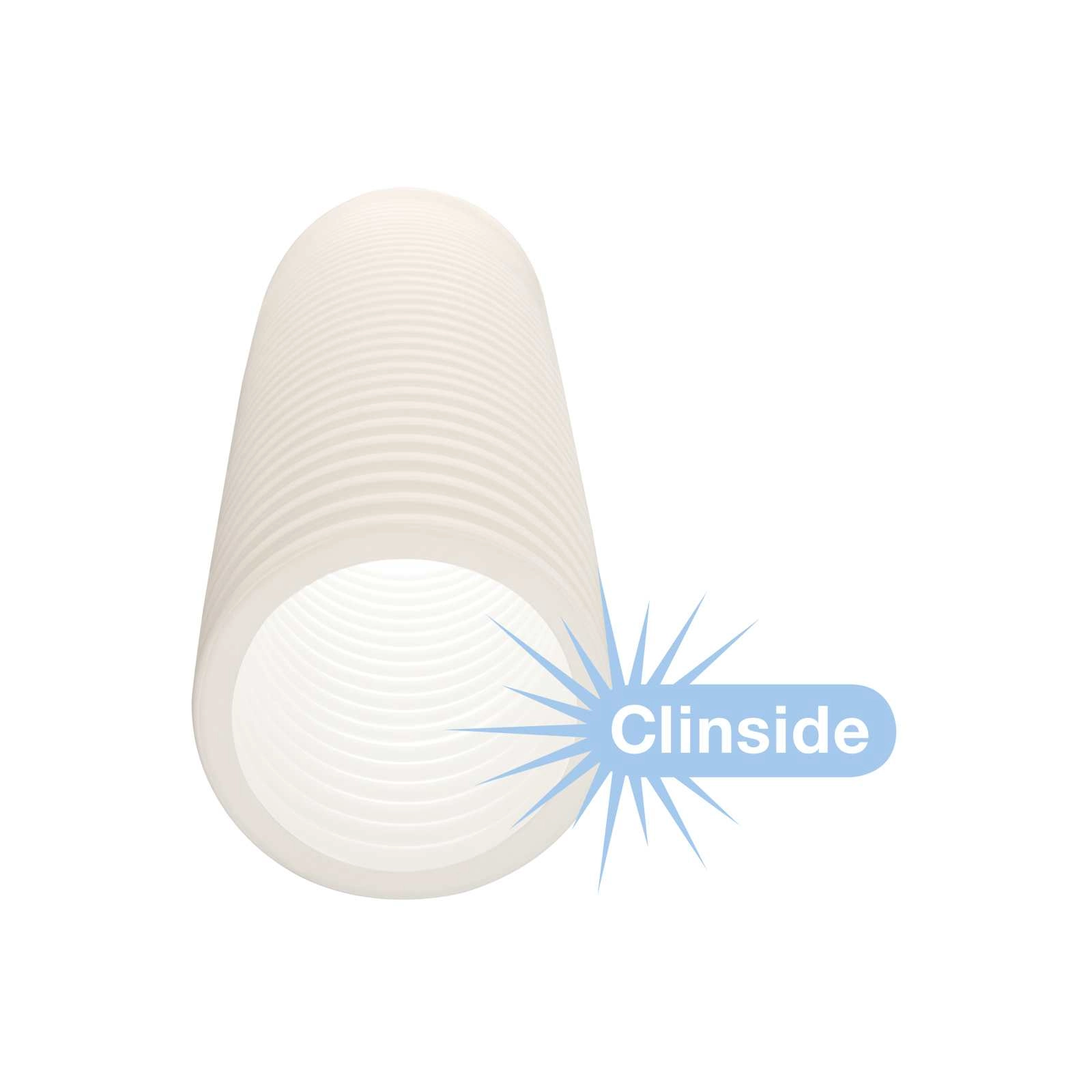

The new Ventilation pipe ComfoTube Flow 75
is the Successor item v. Ventilation pipe
ComfoTube 75 (Art.-Nr.: 990 328 007).
It features a to to 50 Percent reduces Pressure loss, a enlarged Inside diameter and a reduces Weight on.
The flexible, double-walled Ventilation pipe can in Unfinished concrete ceilings, in suspended ceiling, in Riser shafts or
in Stud walls laid are.

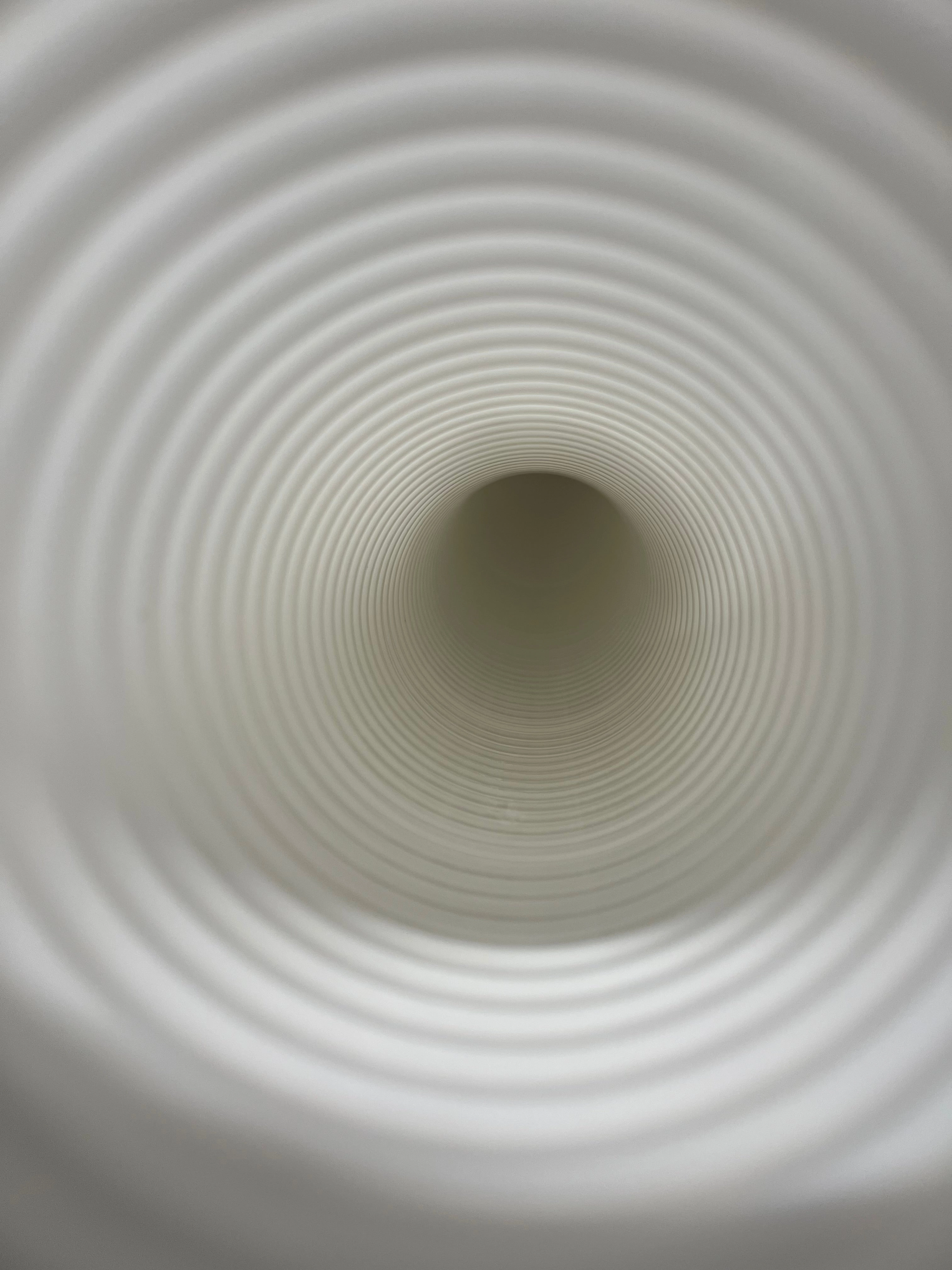

The Ventilation pipe ComfoTube Flow features via a still smooth Inner lining, the
to a clear Reducer of the pressure loss routes, the Deposit of contaminants impedes and the cleaning facilitates.
Delivery including Hygiene plug.
Material: Polyethylene colour: white minimum Bending radius: 2xD
Dimensions:
Outside diameter: 75 mm
Inside diameter: 64 mm
Weight: 0,25 kg/m
Permissible Operating temperature:
-25 to 40C
Recommended Air velocity: 2,7 m/s
Pressure loss: 2,1 Pa/m at 30 m3/h
Ring stiffness: > 8 N/m2
Sound attenuation: 0,6 dB/m at 250 Hz
Buoyancy at Installation in the Concrete: 80 N/m
Delivery quantity: Roll a 50 m
Type:
ZE Ventilation pipe ComfoTube Flow 75, 50 m
white, PE
Make: Zehnder Comfosystems
Item number: 990 328 100
Dokumente
Properties
| Nominal pipe diameter: | 75 mm |
|---|---|
| Height: | 35 mm |
| Width: | 118 mm |
| Material: | Polyethylene |
| Length: | 118 mm |
