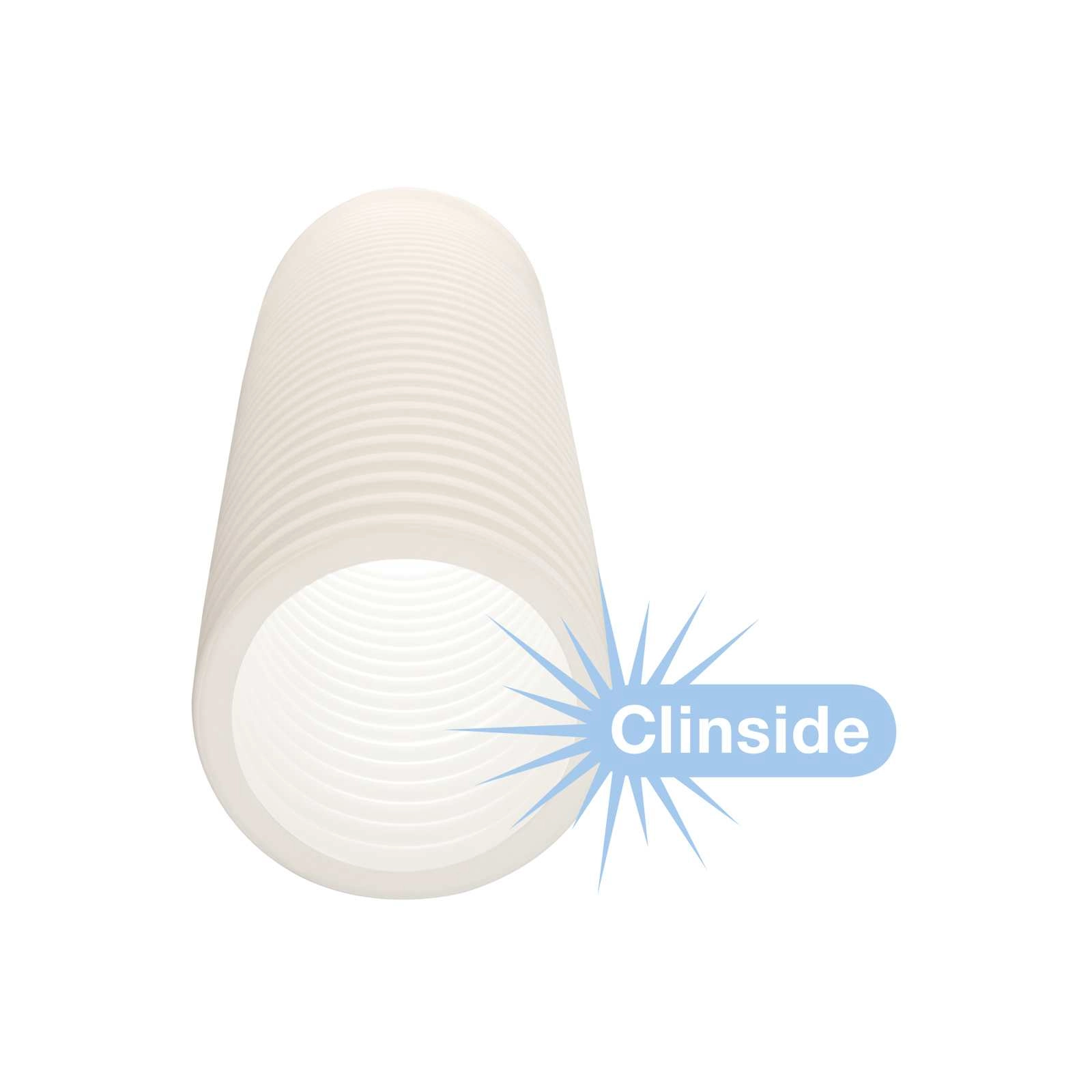

Zehnder Ventilation pipe ComfoTube Flow 90, 50 m Roll

Zehnder ComfoAir for energy-efficient Residential ventilation

€335.93

Product number: 15000474

Stock: 0

Manufacturer: Zehnder

Manufacturer number: 990328101

📦 Kostenloser Versand für dieses Produkt

e Sicher kaufen mit Trusted Shops

↔ Immer 100 Tage Widerrufsrecht

Bezahlen Sie sicher und schnell mit:

Sofort VISA PayPal RIVERTY

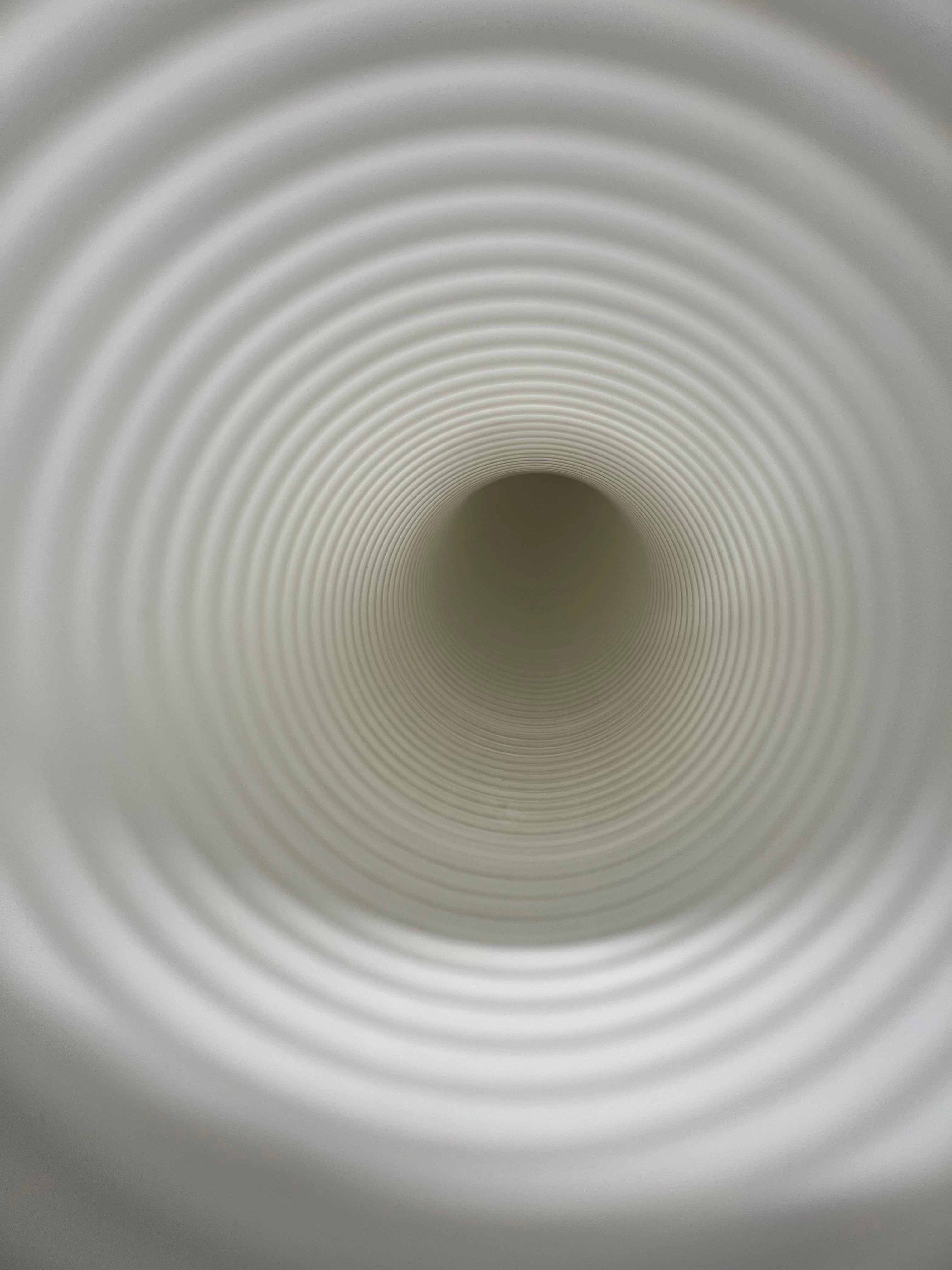

The new Ventilation pipe ComfoTube Flow 90 is the Successor item v. Ventilation pipe ComfoTube 90 (Art.-Nr.: 990 328 009). It features a to to 50 Percent reduces Pressure loss, a enlarged Inside diameter and a reduces Weight on. The flexible, double-walled Ventilation pipe can in Unfinished concrete ceilings, in suspended ceiling, in Riser shafts or in Stud walls laid are. The Ventilation pipe ComfoTube Flow features via a still smooth Inner lining, the to a clear Reducer of the pressure loss routes, the Deposit of contaminants impedes and the cleaning facilitates. Delivery including Hygiene plug. Material: Polyethylene colour: white minimum Bending radius: 2xD Dimensions: Outside diameter: 90 mm Inside diameter: 77 mm Weight: 0,34 kg/m Permissible Operating temperature: -25 to 40C Recommended Air velocity: 2,7 m/s Pressure loss: 1,7 Pa/m at 45 m3/h Ring stiffness: > 8 kN/m2 Sound attenuation: 0,5 dB/m at 250 Hz Buoyancy at Installation in the Concrete: 130 N/m Delivery quantity: Roll a 50 m Type: ZE Ventilation pipe ComfoTube Flow 90, 50 m white, PE Make: Zehnder Comfosystems Item number: 990 328 101

Dokumente

Zehnder_CSY_ComfoTube_Flow_TES_DE-de_1

Nominal pipe diameter:	90 mm
Height:	45 mm
Width:	118 mm
Material:	Polyethylene
Length:	118 mm
