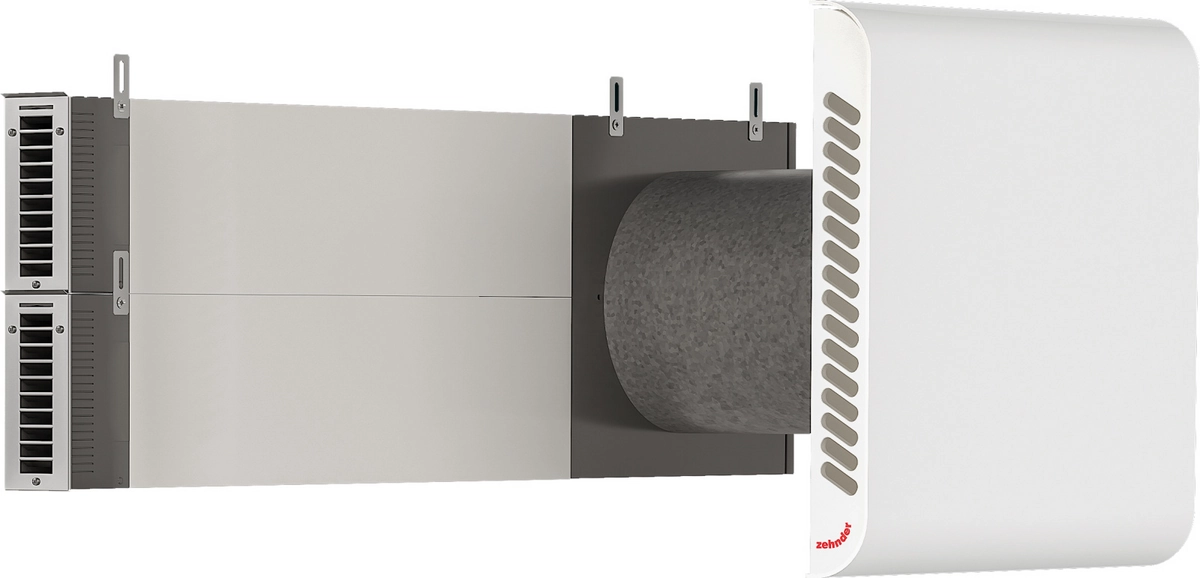

Zehnder Window-reveal module for ComfoSpot 50, Folge 580 mm
Proven Zehnder Quality for Residential ventilation
Regular price:
€414.49
Product number:
11756913
Stock:
0
Manufacturer:
Zehnder
Manufacturer number:
527008660
Kostenloser Versand für dieses Produkt
Sicher kaufen mit Trusted Shops
Immer 100 Tage Widerrufsrecht
Bezahlen Sie sicher und schnell mit:
Sofort
VISA
PayPal
RIVERTY
Description
The Window-reveal module for the ComfoSpot 50
enables a fascia integrated outside air exhaust-air routing in the WDVS
(External thermal insulation composite system) with each a Outlet grille vertical in theFensterlaibung.
It enables 4 versch. Einbauvariantenfor the
AU+FOKanal left, AU+FOKanal right,
AUKanal left + FOKanal right,
AUKanal right + FOKanal left.
The Installation of the Fascia element takes place within of the respective WDVS
on the Outside side the Unfinished exterior wall.
Minimum insulation thickness 120mm.
Minimum wall thickness without WDVS: 335mm
Distance With Core drilling for the window reveal between 3701270mm
Operating limits:20 to +40 Degree Celsius
included in the scope of delivery contain are:
1 Deflection adapter 501x500x100mm incl.
fixed connected PVC Wall installation pipe 580
mm long DN315, 2 PVC Flat ducts
204x60mm 900mm long, 2 EPP Duct adapter 100x120x245mm, Flat duct insulation elements, Sealing plug,
2 Outlet grille Alum. white 245x110mm
incl. Mounting material for Outlet grille at the Duct adapter.
Required Accessories:
ComfoSpot 50 Unit for Window-reveal module,
without Wall installation pipe,without External wall hood quantity: 1 Set type: ZE Window-reveal module ComfoSpot 50
1 Set make: Zehnder Comfosystems
Item number: 527 008 661
Dokumente
Properties
| Height: | 800 mm |
|---|---|
| Width: | 520 mm |
| Length: | 1020 mm |
